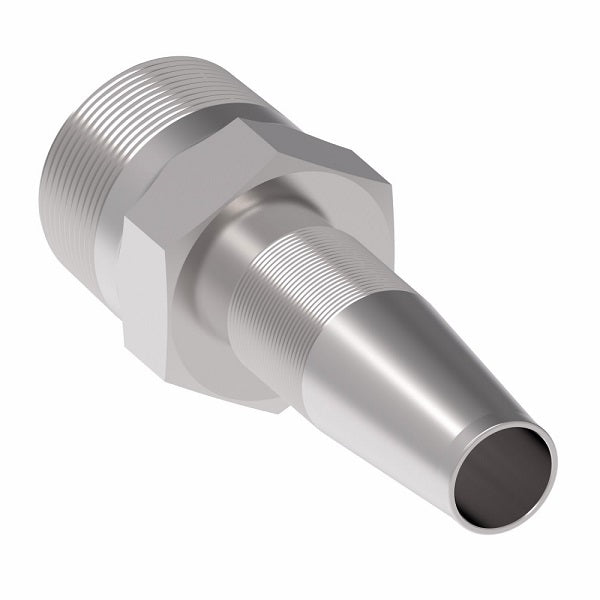

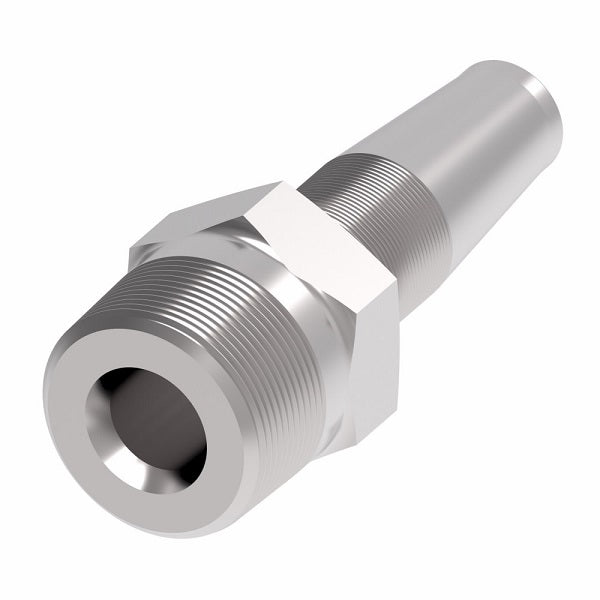

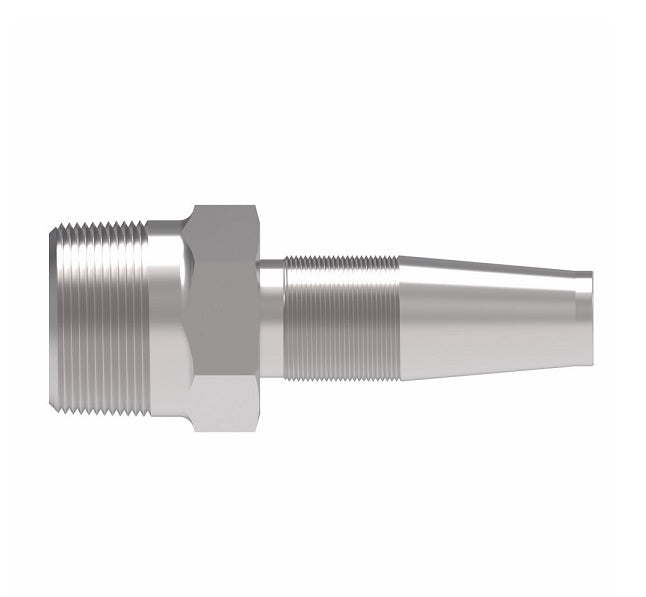

4202-12-12S Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple | -12 Male Pipe x -12 Reusable Hose End | Steel
4202-12-12S Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple | -12 Male Pipe x -12 Reusable Hose End | Steel
4202-12-12S Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple | -12 Male Pipe x -12 Reusable Hose End | Steel
4202-12-12S Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple | -12 Male Pipe x -12 Reusable Hose End | Steel

4202-12-12S Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple | -12 Male Pipe x -12 Reusable Hose End | Steel

$20.48 - $20.48
$20.48
$20.48 - $20.48
$20.48

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Male Pipe - Straight
Specifications for Variant SKU: 4202-12-12S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPT, 3/4in Reusable Hose End
Material(s): Steel
Compatible with the following Series: H180 Series  |   H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
1RA2MP4 - 1RA4 1/8-27 -04 2.17" 1.13" 0.17"
1RA4MP4 4202-4-4S 1RA4 1/4-18 -04 2.36" 1.32" 0.17"
1RA4MP6 4202-4-6S 1RA6 1/4-18 -06 2.68" 1.55" 0.30"
- 4202-6-4S - - -04 - - -
1RA6MP6 4202-6-6S 1RA6 3/8-18 -06 2.68" 1.55" 0.31"
1RA6MP8 4202-6-8S 1RA8 3/8-18 -08 2.82" 1.35" 0.39"
1RA8MP8 4202-8-8S 1RA8 1/2-14 -08 3.07" 1.60" 0.39"
- 4202-8-10S - - -10 - - -
1RA12MP12 4202-12-12S 1RA12 3/4-14 -12 3.55" 1.95" 0.61"
- 4202-16-12S - - -12 - - -
1RA16MP16 4202-16-16S 1RA16 1-11-1/2 -16 4.25" 2.13" 0.82"
- 4202-20-20S - - -20 - - -
- 4202-24-24S - - -24 - - -
- 4202-32-32S - - -32 - - -
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
