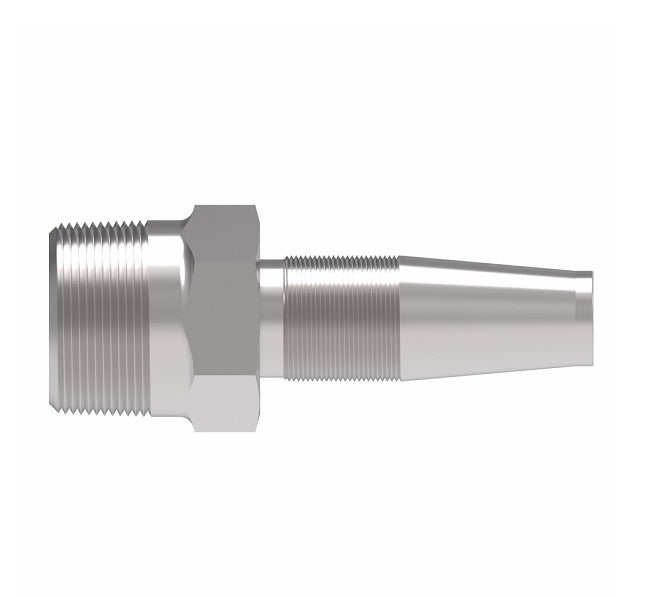

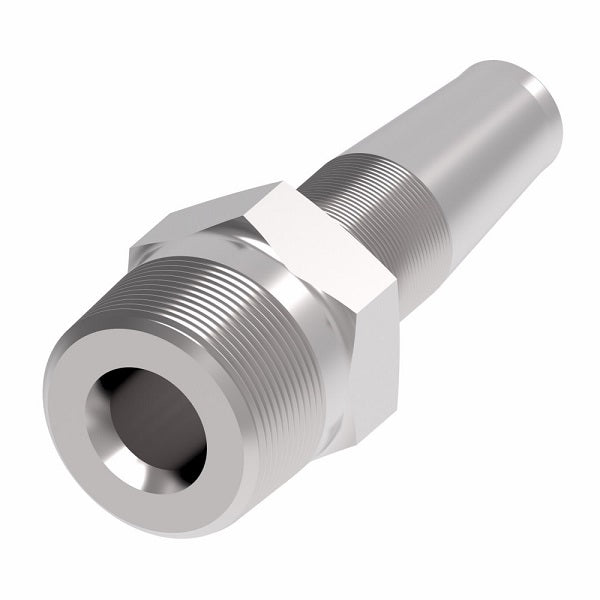

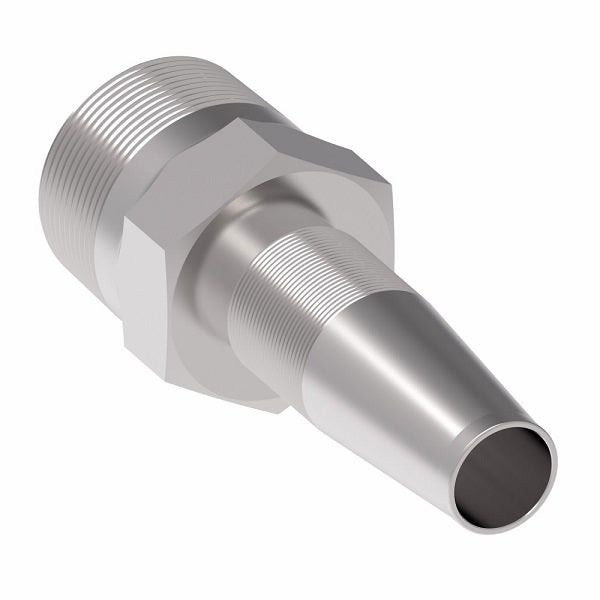

4202-4-6S Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 1 Wire Braided Hose | Nipple | -04 Male Pipe x -06 Reusable Hose End | Steel
4202-4-6S Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 1 Wire Braided Hose | Nipple | -04 Male Pipe x -06 Reusable Hose End | Steel
4202-4-6S Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 1 Wire Braided Hose | Nipple | -04 Male Pipe x -06 Reusable Hose End | Steel
4202-4-6S Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 1 Wire Braided Hose | Nipple | -04 Male Pipe x -06 Reusable Hose End | Steel

4202-4-6S Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 1 Wire Braided Hose | Nipple | -04 Male Pipe x -06 Reusable Hose End | Steel

$90.52 - $90.52
$90.52
$90.52 - $90.52
$90.52

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Male Pipe - Straight
Specifications for Variant SKU: 4202-4-6S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 3/8in Reusable Hose End
Material(s): Steel
Compatible with the following Series: H180 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
1RA2MP4 - 1RA4 1/8-27 -04 2.17" 1.13" 0.17"
1RA4MP4 4202-4-4S 1RA4 1/4-18 -04 2.36" 1.32" 0.17"
1RA4MP6 4202-4-6S 1RA6 1/4-18 -06 2.68" 1.55" 0.30"
- 4202-6-4S - - -04 - - -
1RA6MP6 4202-6-6S 1RA6 3/8-18 -06 2.68" 1.55" 0.31"
1RA6MP8 4202-6-8S 1RA8 3/8-18 -08 2.82" 1.35" 0.39"
1RA8MP8 4202-8-8S 1RA8 1/2-14 -08 3.07" 1.60" 0.39"
- 4202-8-10S - - -10 - - -
1RA12MP12 4202-12-12S 1RA12 3/4-14 -12 3.55" 1.95" 0.61"
- 4202-16-12S - - -12 - - -
1RA16MP16 4202-16-16S 1RA16 1-11-1/2 -16 4.25" 2.13" 0.82"
- 4202-20-20S - - -20 - - -
- 4202-24-24S - - -24 - - -
- 4202-32-32S - - -32 - - -
