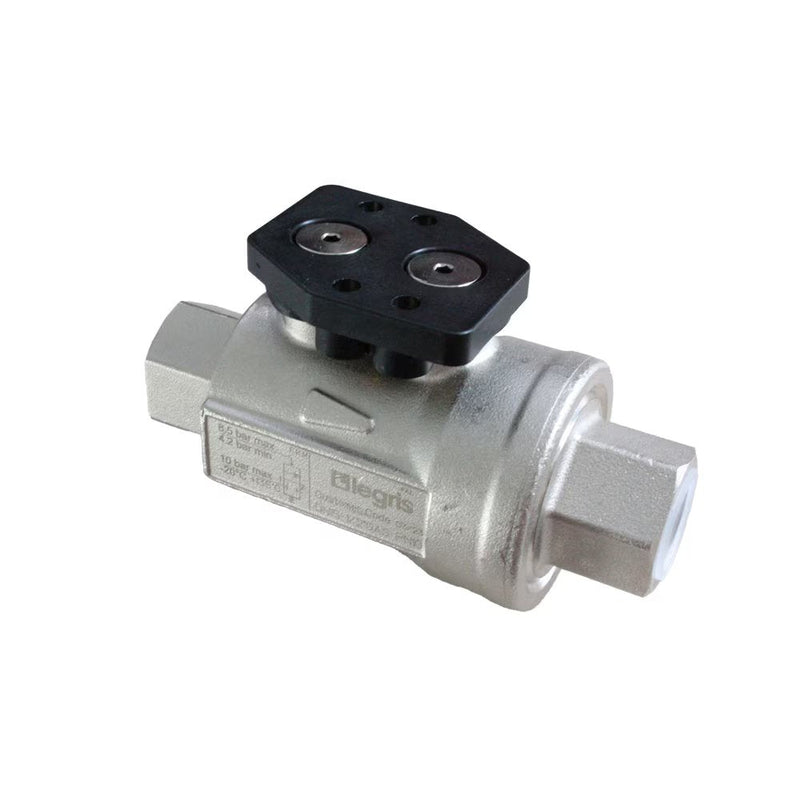

4202 15 21 30 by Parker | Normally Closed Axial Valve w/ EPDM Seal | 1/2" Female BSPP Thread | 27 mm Hex | 113 mm Length | Straight | Nickel-Plated Brass

4202 15 21 30 by Parker | Normally Closed Axial Valve w/ EPDM Seal | 1/2" Female BSPP Thread | 27 mm Hex | 113 mm Length | Straight | Nickel-Plated Brass

Save $24.65 Save $24.65
$339.04
$339.04 - $339.04
$339.04
$314.39
$314.39 - $314.39
$314.39

by Parker Hannifin
Axial Valves:4202..30 Normally Closed Axial Valve with EPDM seal, Female BSPP Thread
Specifications for Variant SKU: 4202 15 21 30 Parker
Series: 4202 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Technical Characteristics:
  • Compatible Fluids: Compressed air, water, industrial fluids, etc.
  • Working Pressure: 10 bar max
  • Working Temperature: -20°C to +150°C (suffix 20 FKM)
    -20°C to 150°C (suffix 30 EPDM)
Advantages:
  • Very compact
  • Simple to install: ready-to-use
  • Two seal materials (FKM, EPDM) for wider chemical and temperature range
  • Pneumatic or electro-pneumatic
  • Three versions: normally closed, normally open and double-acting
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Sub-base: Technical Polymer
  • O-ring: EPDM or FKM
  • Body: Nickel-plated shot blasted brass
  • Lip seal: EPDM or FKM
  • Seat: Nickel-plated brass
  • Seat seal: EPDM or FKM
  • Piston: Chemical nickel-plated brass
Part Number C F G H H1 L Kg
4202 10 17 30 3/8" 22 mm 46 mm 53.5 mm 30.5 mm 98 mm .650 Kg
4202 15 21 30 1/2" 27 mm 52 mm 59 mm 33 mm 113 mm .850 Kg
4202 25 34 30 1" 41 mm 69 mm 76 mm 41.5 mm 144 mm 1.700 Kg
