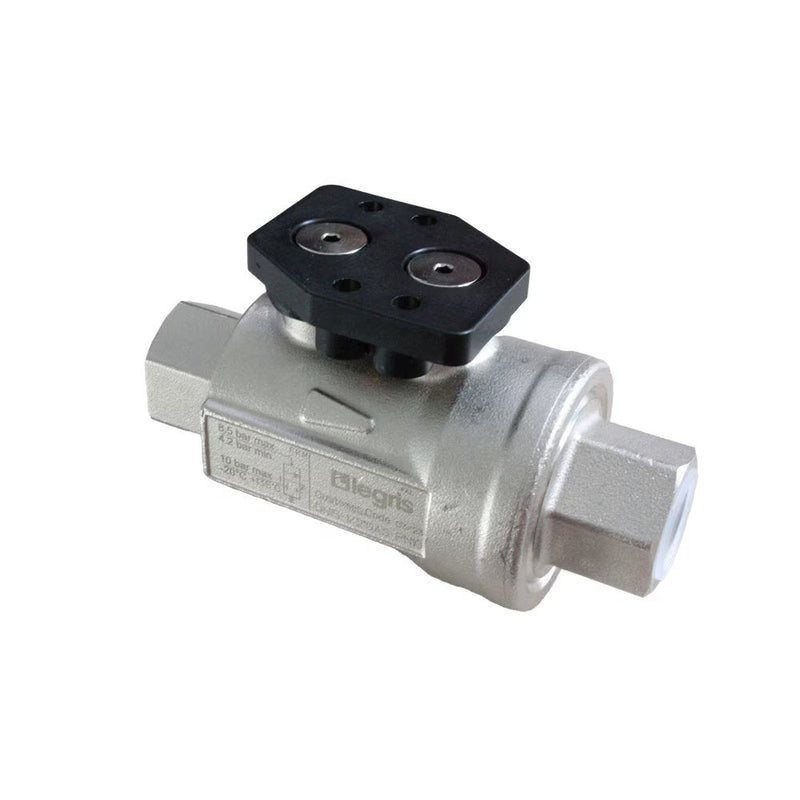

4212 15 21 20 by Parker | Axial Valve | G1/2" Female BSPP Thread w/ FKM Seal | 113 mm Length | Straight | Nickel-Plated Brass | Pack of 20

4212 15 21 20 by Parker | Axial Valve | G1/2" Female BSPP Thread w/ FKM Seal | 113mm Length | Straight | Nickel-Plated Brass

Save $190.41 Save $190.41
$476.02
$476.02 - $476.02
$476.02
$285.61
$285.61 - $285.61
$285.61

by Parker Hannifin
Axial Valves:4212..20 Normally Open Axial Valve with FKM Seal, Female BSPP Thread
Specifications for Variant SKU: 4212 15 21 20 Parker
Series: 4212 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Valved
This valve is equipped with a pneumatic or electro-pneumatic actuator, so it can be integrated into simple automated systems.
Product Features:
  • Very compact
  • Simple to install: ready-to-use
  • Two seal materials (FKM, EPDM) for a wider chemical and temperature range
  • Pneumatic or electro-pneumatic
  • Three versions: normally closed, normally open and double-acting
Applications:
  • Injection Molding
  • Pneumatics
  • Packaging
  • Textile
  • Printing
  • Robotics
Compatible Fluids:
  • Compressed air, water, industrial fluids
  • Other fluids: please contact division.
Specification:
Temperature Range:
  • -4° to +275°F (-20° to +150°C) (suffix 20 FKM)
  • -4° to +275°F (-20° to +150°C) ((suffix 30 EPDM optional; please contact division)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Vacuum Service:
  • 29 in Hg
Pilot Pressure:
  • NC and NO: 61 to 116 PSI (4.2 to 8 bar)
  • Double-acting: 62 to 116 PSI (4.3 to 8 bar)
Part Number NPT (C) F G H H1 L Kg.
4212 10 17 20 G3/8" 22 mm 46 mm 53.5 mm 30.5 mm 98 mm .65 Kg
4212 15 21 20 G1/2" 27 mm 52 mm 59.0 mm 33.0 mm 113 mm .85 Kg
4212 25 34 20 G1" 41 mm 69 mm 76.0 mm 41.5 mm 144 mm 1.70 Kg

Pilot port: G1/8

Delivered with a silencer

*Models with EC marking

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
