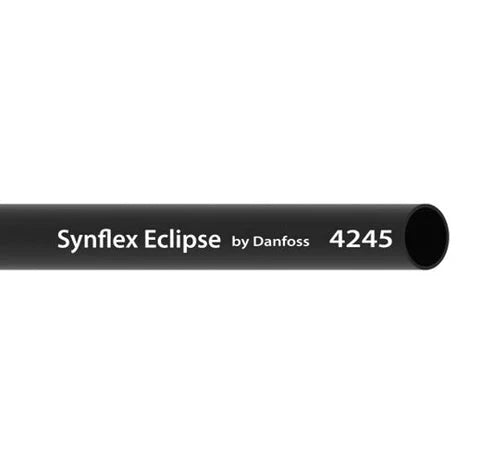

4245-0250-0100 Synflex Eclipse by Danfoss | 4245 Eclipse | Type A Truck Air Brake Tubing | 0.125" Tube OD | 0.09" Tube ID | 0.03" Wall Thickness | Black | 100 ft Length

$107.92 - $107.92

$107.92

$107.92 - $107.92

$107.92

4245 Synflex Eclipse®

Type A Truck Tubing Air Brake Tubing NOTE: Eaton Synflex 4245 Eclipse Tubing is being phased out. Some items have been discontinued. *Item discontinued but limited stock is available. Call for details 330-535-7105.

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 4245-0250-0100 Danfoss \| 100 \|
Brand:	Aeroquip, Synflex Eclipse
Series:	4245 Series
Hose Color(s):	Black
Internal Diameter:	0.092in
Outer Diameter:	0.15625in
Tubing Construction:	Nylon
Applicable Specs & Approvals:	D.O.T. FMVSS 106, SAE J1131, SAE J2494-3, SAE J844 Type A

Hose Properties:
Application:	Truck air brake systems. Trailer air brake systems. Auxiliary air systems. Formed tubes. Formed and straight air brake harness assemblies. Not for use with fuel.	SAE Rating:	Meets: SAE J844 Type A, SAE J1131, SAE J2494-3, DOT-FMVSS 106
Other Ratings:	N/A	Tube:	100% Polyamide
Reinforcement:	Polyester Yarn	Cover:	N/A
Temperature Range:	-65°F to +200°F (-54°C to +93°C)
Features:	Superior abrasion resistance. Ease of cutting. Enhanced flexibility and extension. Flow performance. UV stabilized, thermoformable.

Part Number (12000ft)	Part Number (6000ft)	Part Number (600ft)	Part Number (Other footing)	Tube Size	Tube OD		Tube ID		Wall Thickness		Min. Burst Pressure		Min. Bend Radius		Weight	Color
Part Number (12000ft)	Part Number (6000ft)	Part Number (600ft)	Part Number (Other footing)	Tube Size	mm	in	mm	in	mm	in	bar	psi	mm	in	lbs/100ft	Color
4245-02207	-	-	4245-0220-0100 (100ft) & 4245-0220-1000 (1000ft)	-02	3.2 mm	0.125"	2,0mm	0.08"	0,6mm	0.02"	69,0 bar	1,000 psi	6,4mm	0.25"	0.33 lbs/ft	Black
4245-02227	-	-	-	-02	3.2 mm	0.125"	2,0mm	0.08"	0,6mm	0.02"	69,0 bar	1,000 psi	6,4mm	0.25"	0.33 lbs/ft	Red
4245-02257	-	-	-	-02	3.2 mm	0.125"	2,0mm	0.08"	0,6mm	0.02"	69,0 bar	1,000 psi	6,4mm	0.25"	0.33 lbs/ft	Green
4245-02267	-	-	-	-02	3.2 mm	0.125"	2,0mm	0.08"	0,6mm	0.02"	69,0 bar	1,000 psi	6,4mm	0.25"	0.33 lbs/ft	Blue
-	4245-02506	-	4245-0250-0100 (100ft) & 4245-0250-1000 (1000ft)	-02	4,0 mm	0.125"	2,3mm	0.09"	0,8mm	0.03"	83,0 bar	1,200 psi	12,7mm	0.50"	0.56 lbs/ft	Black
-	4245-02526	-	-	-02	4,0 mm	0.125"	2,3mm	0.09"	0,8mm	0.03"	83,0 bar	1,200 psi	12,7mm	0.50"	0.56 lbs/ft	Red
-	4245-02556	-	-	-02	4,0 mm	0.125"	2,3mm	0.09"	0,8mm	0.03"	83,0 bar	1,200 psi	12,7mm	0.50"	0.56 lbs/ft	Green
-	4245-02566	-	-	-02	4,0 mm	0.125"	2,3mm	0.09"	0,8mm	0.03"	83,0 bar	1,200 psi	12,7mm	0.50"	0.56 lbs/ft	Blue
-	4245-03306	-	4245-0330-0100 (100ft)	-03	4,8 mm	0.188"	3,0mm	0.12"	0,9mm	0.04"	83,0 bar	1,200 psi	19,1mm	0.75"	0.71 lbs/ft	Black
-	4245-03356	-	-	-03	4,8 mm	0.188"	3,0mm	0.12"	0,9mm	0.04"	83,0 bar	1,200 psi	19,1mm	0.75"	0.71 lbs/ft	Green

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
