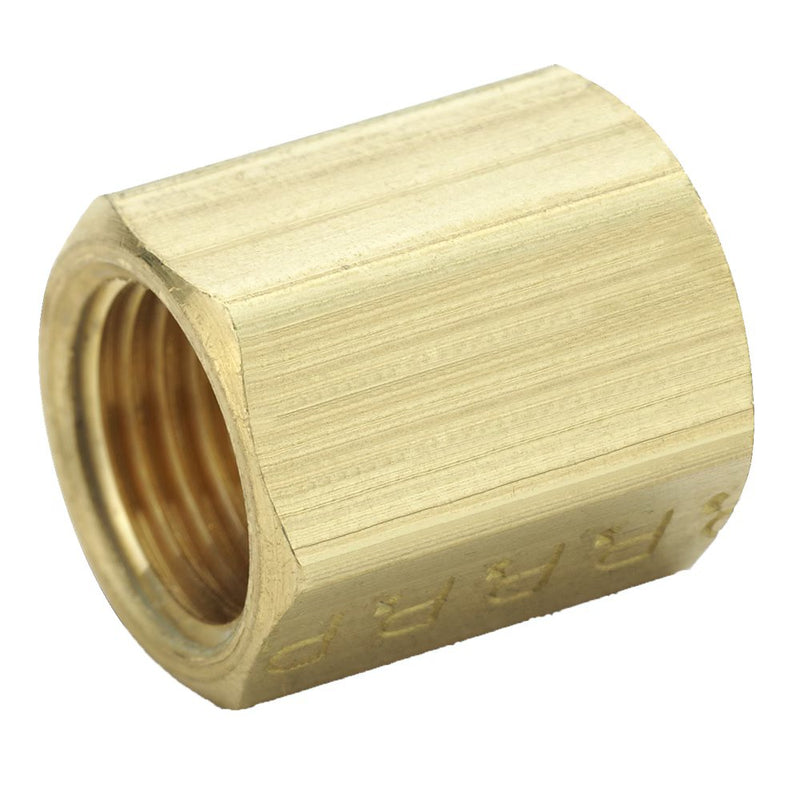

42IFHD-4 by Parker | Inverted Flare Fittings | Union | 1/4" Inverted Flare | 17/32" Hex | .63" Length | Nut | Straight | Brass | Pack of 25

Save $41.41

$103.52

$103.52 - $103.52

$103.52

$62.11

$62.11 - $62.11

$62.11

by Parker Hannifin
Inverted Flared Fittings:Union 42IFHD

Package Quantity: 25 Units

Specifications for Variant SKU: 42IFHD-4 Parker \| 25 \|
Series:	42IFHD Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade, UL Listed

Specification:
Product Features:	All brass construction UL listed for flammable liquid and gas Meets functional requirements of SAE J512 Steel nut for economy
Markets:	Air Conditioning Marine Mobile Engines
Applications:	Refrigerant Lines Brake Lines Fuel Lines
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Pressure Range:	See Chart Below

Compatible Tubing:	Copper Brass Aluminum Welded Steel Hydraulic Tubing


Part Number	Tube Size	Straight Thread	Hex (C)	L	D
42IFHD-2	1/8"	5/16"-28	13/32"	.60"	.078"
42IFHD-3	3/16"	3/8"-24	15/32"	.63"	.125"
42IFHD-4	1/4"	7/16"-24	17/32"	.63"	.189"
42IFHD-5	5/16"	1/2"-20	19/32"	.71"	.220"
42IFHD-6	3/8"	5/8"-18	3/4"	.81"	.282"
