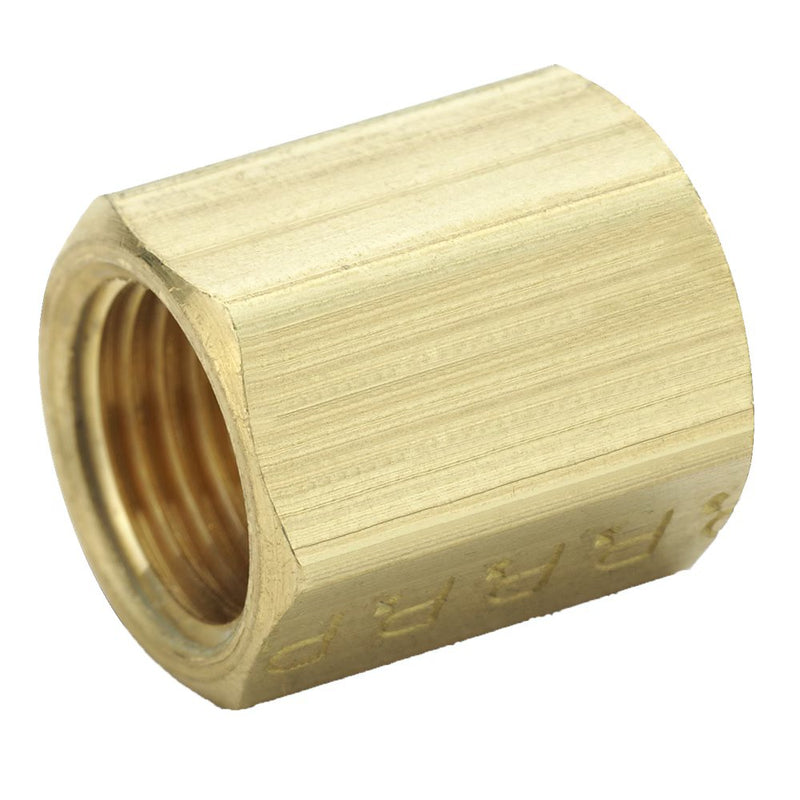

42IFHD-6 by Parker | Inverted Flare Fittings | Union | 3/8" Inverted Flare | 3/4" Hex | .81" Length | Nut | Straight | Brass | Pack of 25

42IFHD-6 by Parker | Inverted Flare Fittings | Union | 3/8" Inverted Flare | 3/4" Hex | .81" Length | Nut | Straight | Brass | Pack of 25

Save $85.75 Save $85.75
$214.38
$214.38 - $214.38
$214.38
$128.63
$128.63 - $128.63
$128.63

by Parker Hannifin
Inverted Flared Fittings:Union 42IFHD

Package Quantity: 25 Units

Specifications for Variant SKU: 42IFHD-6 Parker | 25 |
Series: 42IFHD Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Fuel Grade, UL Listed
Product Features:
  • All brass construction
  • UL listed for flammable liquid and gas
  • Meets functional requirements of SAE J512
  • Steel nut for economy
Markets:
  • Air Conditioning
  • Marine
  • Mobile
  • Engines
Applications:
  • Refrigerant Lines
  • Brake Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Aluminum
  • Welded Steel Hydraulic Tubing
Part Number Tube Size Straight Thread Hex (C) L D
42IFHD-2 1/8" 5/16"-28 13/32" .60" .078"
42IFHD-3 3/16" 3/8"-24 15/32" .63" .125"
42IFHD-4 1/4" 7/16"-24 17/32" .63" .189"
42IFHD-5 5/16" 1/2"-20 19/32" .71" .220"
42IFHD-6 3/8" 5/8"-18 3/4" .81" .282"
