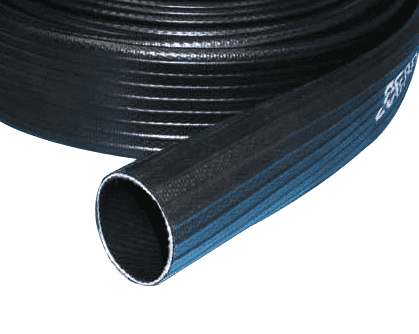

4359-1000-100 by Jason Industrial | 4359 Series | Oil Resistant Discharge Hose | 150 PSI | 10" ID | 0.160" Wall Thickness | Black | Nitrile/PVC | 100ft

Save $1,103.51

$3,862.28

$3,862.28 - $3,862.28

$3,862.28

$2,758.77

$2,758.77 - $2,758.77

$2,758.77

Jason Industrial Inc. Hose - Water Hose - 4359 Nitrile/PVC Oil Resistant Discharge Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 4359-1000-100 Jason \| 100 \|
Series:	4359 Series
Hose Color(s):	Black
Internal Diameter:	10in
Tubing Construction:	Nitrile/PVC Blend
Cover Construction:	Nitrile/PVC Blend

SPECIFICATIONS

Other Features:
Application:	For use in industrial washdown, irrigation, general dewatering, pump discharge and drainage.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black, NBR/PVC
Reinforcement:	N/A	Cover:	Black, NBR/PVC
Temperature Range:	-20 deg F (-29 deg. C) to +210 deg. F (+99 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	N/A
Up to 250 PSI (17.24 BAR) working pressure Oil resistant tube and cover Resists heat, cold, ozone and UV light Lightweight and flexible 660 ft. lengths available in 4", 6" and 8" IDs

Part Number	I.D.		Wall Thickness		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	ft
Uncoupled
4359-0075-050	3/4"	19.05mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.10 lb./ft.	0.15 KG/m	50ft
4359-0075-100	3/4"	19.05mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.10 lb./ft.	0.15 KG/m	100ft
4359-0100-050	1"	25.40mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.14 lb./ft.	0.21 KG/m	50ft
4359-0100-100	1"	25.40mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.14 lb./ft.	0.21 KG/m	100ft
4359-0150-050	1-1/2"	38.10mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.26 lb./ft.	0.39 KG/m	50ft
4359-0150-100	1-1/2"	38.10mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.26 lb./ft.	0.39 KG/m	100ft
4359-0200-050	2"	50.80mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.34 lb./ft.	0.51 KG/m	50ft
4359-0200-100	2"	50.80mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.34 lb./ft.	0.51 KG/m	100ft
4359-0250-050	2-1/2"	63.50mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.47 lb./ft.	0.70 KG/m	50ft
4359-0250-100	2-1/2"	63.50mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.47 lb./ft.	0.70 KG/m	100ft
4359-0300-050	3"	76.20mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.65 lb./ft.	0.97 KG/m	50ft
4359-0300-100	3"	76.20mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.65 lb./ft.	0.97 KG/m	100ft
4359-0400-050	4"	102.40mm	0.110"	2.79mm	N/A	200 PSI	13.79 BAR	N/A	0.83 lb./ft.	1.24 KG/m	50ft
4359-0400-100	4"	102.40mm	0.110"	2.79mm	N/A	200 PSI	13.79 BAR	N/A	0.83 lb./ft.	1.24 KG/m	100ft
4359-0600-050	6"	152.40mm	0.110"	2.79mm	N/A	150 PSI	10.35 BAR	N/A	1.60 lb./ft.	2.39 KG/m	50ft
4359-0600-100	6"	152.40mm	0.110"	2.79mm	N/A	150 PSI	10.35 BAR	N/A	1.60 lb./ft.	2.39 KG/m	100ft
4359-0800-050	8"	204.80mm	0.110"	2.79mm	N/A	150 PSI	10.35 BAR	N/A	2.30 lb./ft.	3.43 KG/m	50ft
4359-0800-100	8"	204.80mm	0.110"	2.79mm	N/A	150 PSI	10.35 BAR	N/A	2.30 lb./ft.	3.43 KG/m	100ft
4359-1000-050	10"	254.00mm	0.160"	4.06mm	N/A	150 PSI	10.35 BAR	N/A	3.20 lb./ft.	4.77 KG/m	50ft
4359-1000-100	10"	254.00mm	0.160"	4.06mm	N/A	150 PSI	10.35 BAR	N/A	3.20 lb./ft.	4.77 KG/m	100ft
4359-1200-050	12"	304.80mm	0.170"	4.32mm	N/A	150 PSI	10.35 BAR	N/A	3.50 lb./ft.	5.22 KG/m	50ft
4359-1200-100	12"	304.80mm	0.170"	4.32mm	N/A	150 PSI	10.35 BAR	N/A	3.50 lb./ft.	5.22 KG/m	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
