4411-10S Aeroquip by Danfoss | 100R5 Reusable Hose Fitting (2 Piece) | -10 Female 37° JIC Swivel/SAE 45° Flare Dual Seat x -10 Reusable Hose End | Steel
4411-10S Aeroquip by Danfoss | 100R5 Reusable Hose Fitting (2 Piece) | -10 Female 37° JIC Swivel/SAE 45° Flare Dual Seat x -10 Reusable Hose End | Steel
4411-10S Aeroquip by Danfoss | 100R5 Reusable Hose Fitting (2 Piece) | -10 Female 37° JIC Swivel/SAE 45° Flare Dual Seat x -10 Reusable Hose End | Steel
4411-10S Aeroquip by Danfoss | 100R5 Reusable Hose Fitting (2 Piece) | -10 Female 37° JIC Swivel/SAE 45° Flare Dual Seat x -10 Reusable Hose End | Steel

4411-10S Aeroquip by Danfoss | 100R5 Reusable Hose Fitting (2 Piece) | -10 Female 37° JIC Swivel/SAE 45° Flare Dual Seat x -10 Reusable Hose End | Steel

$28.78 - $28.78
$28.78
$28.78 - $28.78
$28.78

Aeroquip® by Danfoss

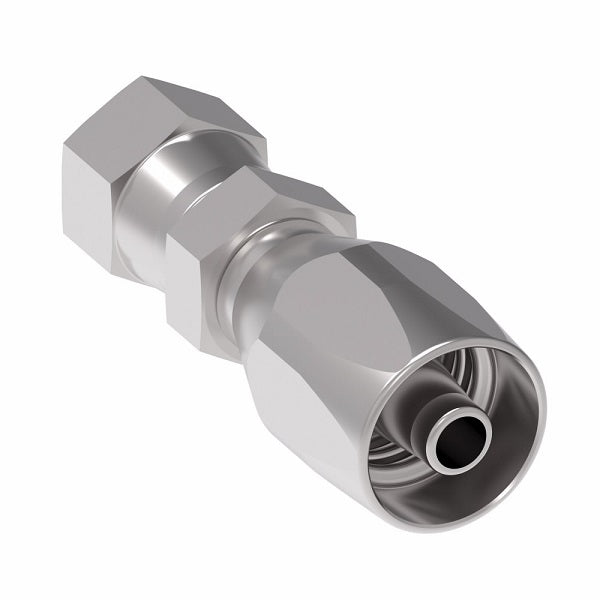

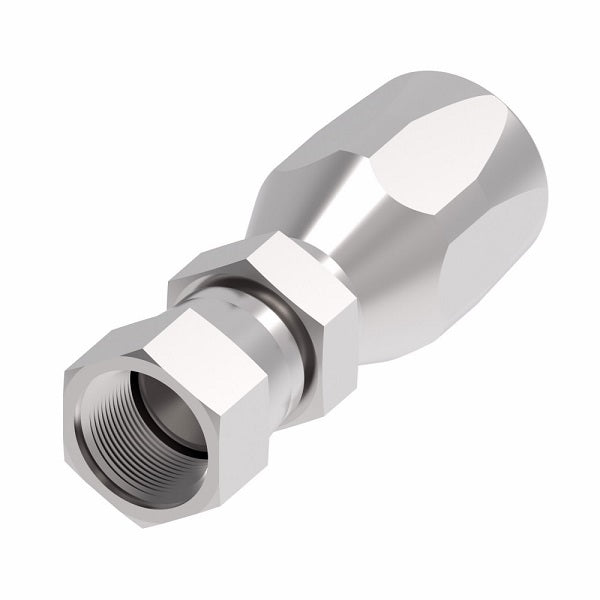

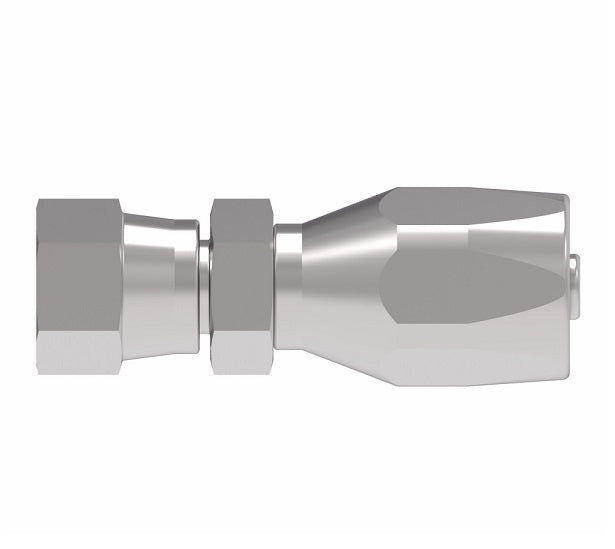

SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

Two Piece Fitting.

Threads on this fitting are JIC Swivel/SAE 45° Flare Dual Seat.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4411-10S Danfoss
Shape (Orientation): Straight
Ends Configuration: 5/8in Female JIC, 5/8in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Stainless Steel
Part Number 		Hose Size Thread A D EØ
4411-4S* 259-4411-4 -04 7/16-20 1.97" 1.23" 0.13"
4411-4-5S - -05 7/16-20 2.08" 1.30" 0.17"
4411-5S* 259-4411-5 -05 1/2-20 2.12" 1.35" 0.18"
4411-6S 259-4411-6 -06 9/16-18 2.33" 1.43" 0.24"
4411-6-8S - -08 9/16-18 2.68" 1.53" 0.30"
4411-8S* 259-4411-8 -08 3/4-16 2.78" 1.62" 0.36"
4411-8-6S* - -06 3/4-16 2.42" 1.52" 0.24"
4411-10-8S - -08 7/8-14 2.95" 1.80" 0.36"
4411-8-10S* - -10 3/4-16 2.92" 1.64" 0.39"
4411-10S* 259-4411-10 -10 7/8-14 3.10" 1.81" 0.46"
4411-12-10S - -10 1-1/16-12 3.19" 1.91" 0.46"
4411-10-12S - -12 7/8-14 3.40" 1.83" 0.55"
4411-12S 259-4411-12 -12 1-1/16-12 3.46" 1.92" 0.55"
4411-14-12S - -12 1-3/16-12 3.56" 1.99" 0.55"
4411-16S 259-4411-16 -16 1-5/16-12 3.19" 1.93" 0.82"
4411-20S - -20 1-5/8-12 3.43" 2.07" 1.05"
4411-20-24S - -24 1-5/8-12 3.65" 2.19" 1.06"
4411-24S - -24 1-7/8-12 3.68" 2.22" 1.28"
4411-32S - -32 2-1/2-12 4.39" 2.55" 1.75"

* Threads are Female 37° JIC Swivel/SAE 45° Flare Dual Seat

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
