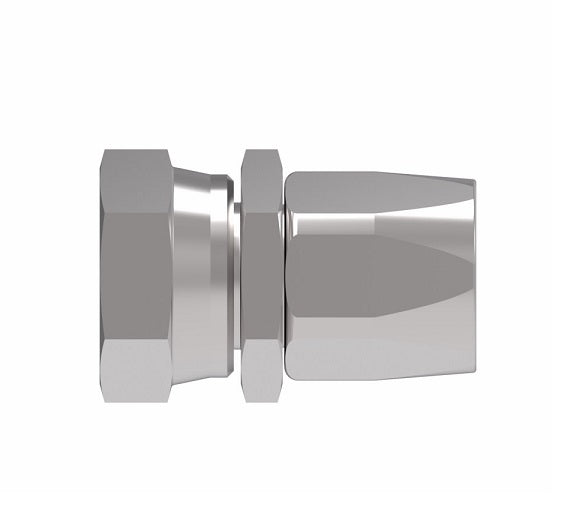

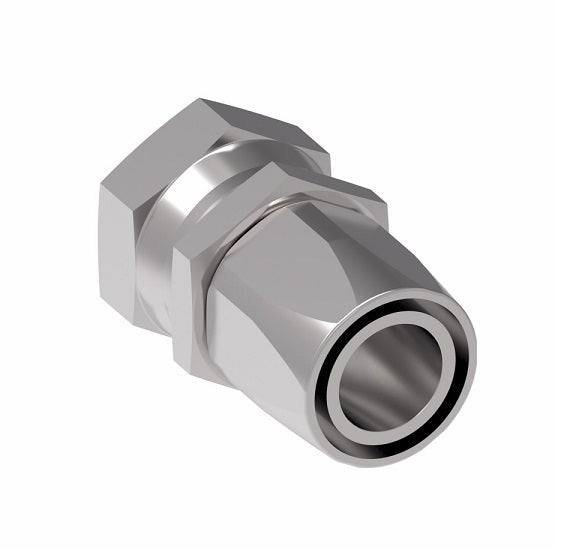

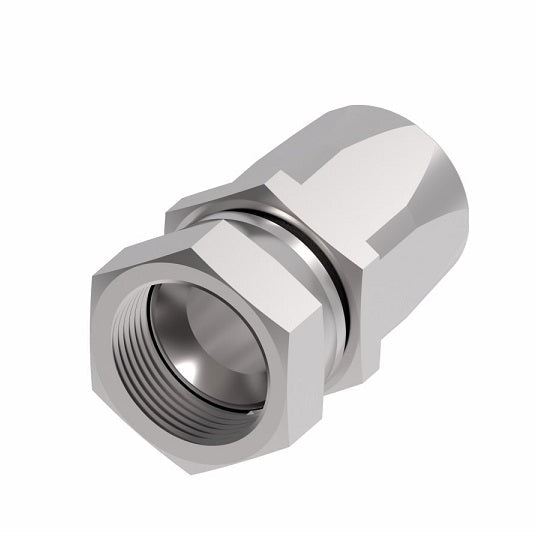

4411-20S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel
4411-20S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel
4411-20S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel
4411-20S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel

4411-20S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel

$113.61 - $113.61
$113.61
$113.61 - $113.61
$113.61

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

Three Piece Fitting.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4411-20S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female JIC, 1-1/4in Reusable Hose End
Special Properties: Swivel
Compatible with the following Series: 1503  |   2580  |   2651  |   FC234  |   FC300  |   FC321  |   FC350  |   FC355  |   FC802
Technical Info:
Steel
Part Number 		Stainless Steel
Part Number 		Hose Size Thread A D EØ
4411-4S* 259-4411-4 -04 7/16-20 1.97" 1.23" 0.13"
4411-4-5S - -05 7/16-20 2.08" 1.30" 0.17"
4411-5S* 259-4411-5 -05 1/2-20 2.12" 1.35" 0.18"
4411-6S 259-4411-6 -06 9/16-18 2.33" 1.43" 0.24"
4411-6-8S - -08 9/16-18 2.68" 1.53" 0.30"
4411-8S* 259-4411-8 -08 3/4-16 2.78" 1.62" 0.36"
4411-8-6S* - -06 3/4-16 2.42" 1.52" 0.24"
4411-10-8S - -08 7/8-14 2.95" 1.80" 0.36"
4411-8-10S* - -10 3/4-16 2.92" 1.64" 0.39"
4411-10S* 259-4411-10 -10 7/8-14 3.10" 1.81" 0.46"
4411-12-10S - -10 1-1/16-12 3.19" 1.91" 0.46"
4411-10-12S - -12 7/8-14 3.40" 1.83" 0.55"
4411-12S 259-4411-12 -12 1-1/16-12 3.46" 1.92" 0.55"
4411-14-12S - -12 1-3/16-12 3.56" 1.99" 0.55"
4411-16S 259-4411-16 -16 1-5/16-12 3.19" 1.93" 0.82"
4411-20S - -20 1-5/8-12 3.43" 2.07" 1.05"
4411-20-24S - -24 1-5/8-12 3.65" 2.19" 1.06"
4411-24S - -24 1-7/8-12 3.68" 2.22" 1.28"
4411-32S - -32 2-1/2-12 4.39" 2.55" 1.75"

* Threads are Female 37° JIC Swivel/SAE 45° Flare Dual Seat

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
