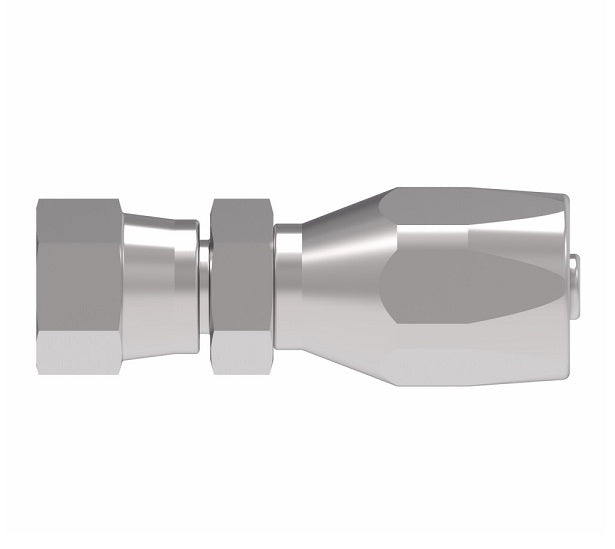

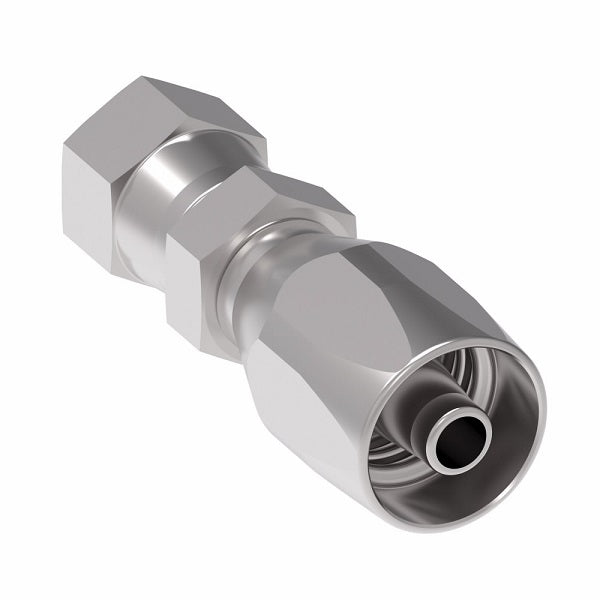

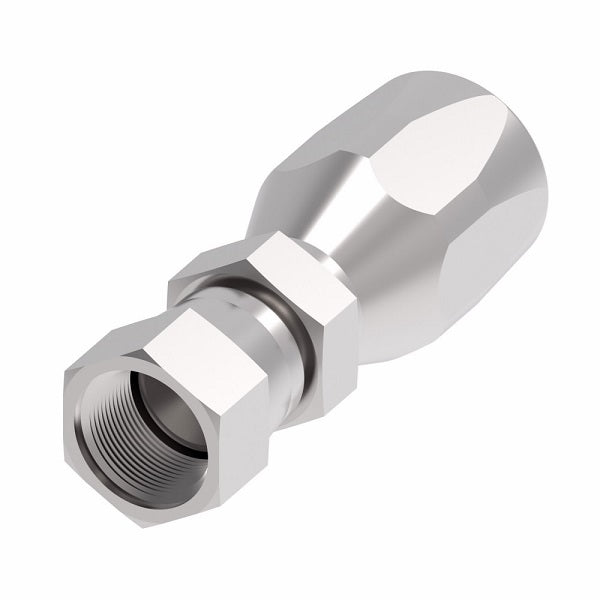

4411-8-10S Aeroquip by Danfoss | 100R5 Reusable Hose Fitting (2 Piece) | -08 Female 37° JIC Swivel/SAE 45° Flare Dual Seat x -10 Reusable Hose End | Steel

Name: 4411-8-10S Aeroquip by Danfoss | 100R5 Reusable Hose Fitting (2 Piece) | -08 Female 37° JIC Swivel/SAE 45° Flare Dual Seat x -10 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 4411-8-10S Danfoss
Price: 39.54 USD
Availability: InStock

$39.54

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

Two Piece Fitting.

Threads on this fitting are JIC Swivel/SAE 45° Flare Dual Seat.

(Formerly Eaton Aeroquip)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4411-8-10S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female JIC, 5/8in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Stainless Steel Part Number	Hose Size	Thread	A	D	EØ
4411-4S*	259-4411-4	-04	7/16-20	1.97"	1.23"	0.13"
4411-4-5S	-	-05	7/16-20	2.08"	1.30"	0.17"
4411-5S*	259-4411-5	-05	1/2-20	2.12"	1.35"	0.18"
4411-6S	259-4411-6	-06	9/16-18	2.33"	1.43"	0.24"
4411-6-8S	-	-08	9/16-18	2.68"	1.53"	0.30"
4411-8S*	259-4411-8	-08	3/4-16	2.78"	1.62"	0.36"
4411-8-6S*	-	-06	3/4-16	2.42"	1.52"	0.24"
4411-10-8S	-	-08	7/8-14	2.95"	1.80"	0.36"
4411-8-10S*	-	-10	3/4-16	2.92"	1.64"	0.39"
4411-10S*	259-4411-10	-10	7/8-14	3.10"	1.81"	0.46"
4411-12-10S	-	-10	1-1/16-12	3.19"	1.91"	0.46"
4411-10-12S	-	-12	7/8-14	3.40"	1.83"	0.55"
4411-12S	259-4411-12	-12	1-1/16-12	3.46"	1.92"	0.55"
4411-14-12S	-	-12	1-3/16-12	3.56"	1.99"	0.55"
4411-16S	259-4411-16	-16	1-5/16-12	3.19"	1.93"	0.82"
4411-20S	-	-20	1-5/8-12	3.43"	2.07"	1.05"
4411-20-24S	-	-24	1-5/8-12	3.65"	2.19"	1.06"
4411-24S	-	-24	1-7/8-12	3.68"	2.22"	1.28"
4411-32S	-	-32	2-1/2-12	4.39"	2.55"	1.75"

* Threads are Female 37° JIC Swivel/SAE 45° Flare Dual Seat
