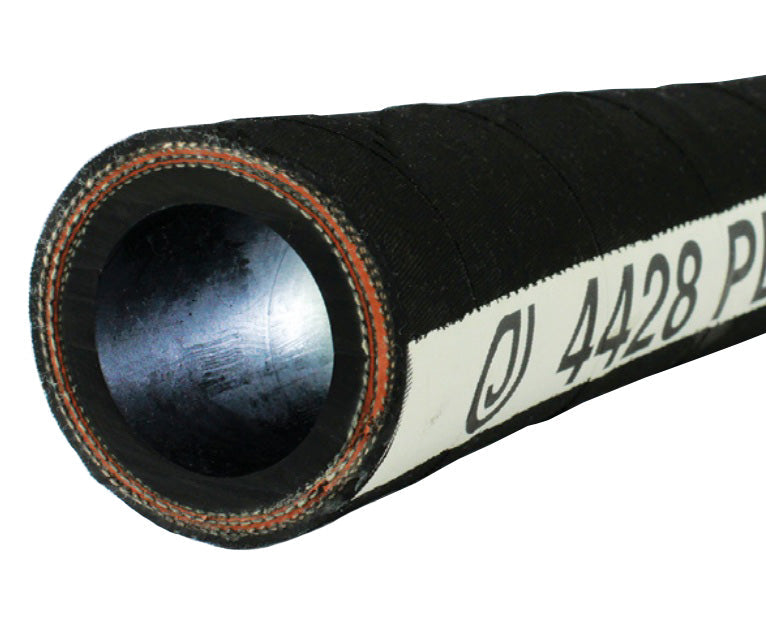

4428-0150-100 by Jason Industrial | 4428 Series | Plaster and Grout Hose | NR/BR | 1-1/2" ID | 2.20" OD | 800 PSI | Black | 100ft

Save $364.71

$1,563.23

$1,563.23 - $1,563.23

$1,563.23

$1,198.52

$1,198.52 - $1,198.52

$1,198.52

Jason Industrial
4428 Series | Plaster and Grout Hose | Black

Used for spraying plaster, grout, sand and gypsym.

Package Quantity: 100 FT

Specifications for Variant SKU: 4428-0150-100 Jason \| 100 \|
Series:	4428 Series
Hose Color(s):	Black
Internal Diameter:	1.5in
Outer Diameter:	2.2in
Tubing Construction:	NR/BR Blend
Cover Construction:	SBR/EPDM Blend
Special Properties:	Pin Pricked Hose Cover

Material Handling Hose

Jason Industrial | 4428 Series
Plaster and Grout Hose

1

What is this product used for?

Used for spraying plaster, grout, sand and gypsym.

2

What are the key specifications?

Tube

NR/BR Blend

Cover

SBR/EPDM Blend, Pin-Pricked

Reinforcement

Four Plies of Synthetic Textile With a Static Wire

Temperature Range

-40°F (-40°C) to +158°F (+70°C)

Colors

Black

Branding

Jason logo 4428 PLASTER GROUT WP 800 PSI 55.2 BAR. White mylar longitudinal stripe.

Specifications

N/A

Design Factor

3:1

3

What are the main product features?

Cover ozone and weather resistant.
Very good abrasion resistance.
Handles a variety of applications.

4

Which sizes or configurations are available?

Part Number 100ft	ID		OD		Reinfor- cement Plies	Max. Working Pressure @ 68° F		Vacuum @ 68°F	Weight (lbs/ft)	Minimum Bend Radius
Part Number 100ft	in	mm	in	mm	Reinfor- cement Plies	PSI	BAR	in of Hg	Weight (lbs/ft)	in	mm
4428-0100-100	1"	25.40mm	1.67"	42.40mm	4	800 PSI	55.20 BAR	—	1.05lbs	—	—
4428-0150-100	1-1/2"	38.10mm	2.20"	56.00mm	4	800 PSI	55.20 BAR	—	1.07lbs	—	—
4428-0200-100	2"	50.80mm	2.76"	70.00mm	4	800 PSI	55.20 BAR	—	1.43lbs	—	—
4428-0250-100	2-1/2"	63.50mm	3.31"	84.00mm	4	800 PSI	55.20 BAR	—	1.73lbs	—	—

WARNING: Working pressure (W.P.) is temperature dependent.

i

No by the foot sales. This is a Packaged Length product.
