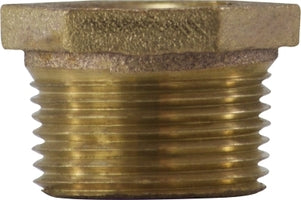

44507 by Midland | Hex Bushing | 3/4" Female Pipe x 1/4" Male Pipe | Bronze

Save $0.36 Save $0.36
Original price $7.66
Original price $7.66 - Original price $7.66
Original price $7.66
Current price $7.30
$7.30 - $7.30
Current price $7.30

Midland Industries
Bronze Fitting - Hex Bushing - Female Pipe x Male Pipe

Not Lead Free.

Bronze threaded fittings are manufactured from smooth-cored castings, designed to provide full flow with minimum restriction. All threads are accurately machined and gauged to ensure a perfect fit with the pipe.

All fittings are individually tested under water to ensure quality.

Bronze provides a tighter seal and is easier to install than other metals.

Resists the harmful effects of corrosion when coming into contact with salt water or fresh water polluted with mineral acids or peaty soils.

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 206 Units

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 44507 Midland
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 1/4in Male NPT
Material(s): Bronze
Applicable Specs & Approvals: FM, RoHS Compliant, UL842, UL258, UL125

SPECIFICATIONS

Applications: Water, Plumbing, Heating, Pneumatic and Marine Applications
Class 125 (150) For steam, water, gas, oil and air service
Specifications: UL/FM Approved (UL842, UL258, UL125, FM), 1S0 9001:2000, RoHS Compliant
Materials - ASTM B62-93 (85,5,5,5) C83600
Dimensions - ANSI B 16.15
Threads - ANSI B2.1 or BA 21 and Fed. WW-P-460C, MSS-SP-106, ANSI/ASME B1.20.1
Crossover Series:
110RB
Part Number Size A Hex Approx. Weight
(Lbs.)
44500
(44-500)
1/4" x 1/8" 0.58" 0.66" 0.02
44501
(44-501)
3/8" x 1/8" 0.64" 0.72" 0.06
44502
(44-502)
3/8" x 1/4" 0.64" 0.75" 0.04
44503
(44-503)
1/2" x 1/8" 0.75" 0.92" 0.10
44504
(44-504)
1/2" x 1/4" 0.75" 0.93" 0.09
44505
(44-505)
1/2" x 3/8" 0.75" 0.92" 0.08
44506
(44-506)
3/4" x 1/8" 0.87" 1.15" 0.17
44507
(44-507)
3/4" x 1/4" 0.85" 1.14" 0.15
44508
(44-508)
3/4" x 3/8" 0.85" 1.14" 0.14
44509
(44-509)
3/4" x 1/2" 0.85" 1.15" 0.14
44510*
(44-510)
1" x 1/4" 1.05" 1.43" 0.23
44511*
(44-511)
1" x 3/8" 1.05" 1.50" 0.22
44512
(44-512)
1" x 1/2" 1.00" 1.40" 0.25
44513
(44-513)
1" x 3/4" 1.00" 1.43" 0.21
44515
(44-515)
1-1/4" x 3/8" 1.19" 1.84" 0.35
44516*
(44-516)
1-1/4" x 1/2" 1.14" 1.33" 0.34
44517
(44-517)
1-1/4" x 3/4" 1.08" 1.75" 0.40
44518
(44-518)
1-1/4" x 1" 1.08" 1.76" 0.33
44521*
(44-521)
1-1/2" x 1/2" 1.20" 2.10" 0.44
44522*
(44-522)
1-1/2" x 3/4" 1.20" 2.12" 0.48
44523
(44-523)
1-1/2" x 1" 1.14" 2.08" 0.53
44524
(44-524)
1-1/2" x 1-1/4" 1.14" 2.12" 0.45
44527*
(44-527)
2" x 1/2" 1.27" 1.32" 0.67
44528*
(44-528)
2" x 3/4" 1.27" 1.62" 0.74
44529*
(44-529)
2" x 1" 1.29" 1.95" 0.76
44530
(44-530)
2" x 1-1/4" 1.22" 2.47" 0.86
44531
(44-531)
2" x 1-1/2" 1.22" 2.50" 0.83
44535
(44-535)
2-1/2" x 2" 1.43" 2.97" 1.13
44538
(44-538)
3" x 2" 1.61" 3.70" 2.33
44539
(44-539)
3" x 2-1/2" 1.53" 3.70" 2.19
44543
(44-543)
4" x 3" 2.01" 4.62" 4.22

* Inside Hex
