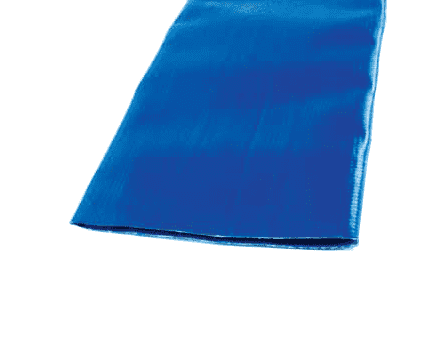

4502-1000 by Jason Industrial | 4502 Series | Water Discharge Hose | 85 PSI | 1" ID | 0.056" Wall Thickness | Blue | PVC | 300ft

Save $14.28

$142.80

$142.80 - $142.80

$142.80

$128.52

$128.52 - $128.52

$128.52

Jason Industrial Inc. Hose - Water Hose - 4502 Blue PVC Water Discharge Bulk Hose & Assemblies

Package Quantity: 300 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4502-1000 Jason \| 300 \|
Series:	4502 Series
Hose Color(s):	Blue
Internal Diameter:	1in
Tubing Construction:	PVC
Cover Construction:	PVC

SPECIFICATIONS

Other Features:
Application:	For general purpose water discharge in construction, agriculture and drip irrigation.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Blue, PVC
Reinforcement:	Knitted Polyester Yarn	Cover:	Blue, PVC
Temperature Range:	-14 deg F (-26 deg. C) to +150 deg. F (+66 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo WP XX (PSI) ID
Light and easy to handle Rolls flat for convenient storage Homogeneous construction eliminates tube and cover separation Maximum bonding is due to the tube and cover being extruded simultaneously

Part Number	I.D.		Wall Thickness		Reinforcement	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	ft
Uncoupled - Bulk
4502-1000	1"	25.40mm	0.056"	1.42mm	Knitted	85 PSI	5.86 BAR	N/A	0.10 lb./ft.	0.15 KG/m	300ft
4502-1500	1-1/2"	38.10mm	0.056"	1.42mm	Knitted	85 PSI	5.86 BAR	N/A	0.21 lb./ft.	0.31 KG/m	300ft
4502-1500-050	1-1/2"	38.10mm	0.056"	1.42mm	Knitted	85 PSI	5.86 BAR	N/A	0.21 lb./ft.	0.31 KG/m	50ft
4502-2000	2"	50.80mm	0.056"	1.42mm	Knitted	85 PSI	5.86 BAR	N/A	0.25 lb./ft.	0.37 KG/m	300ft
4502-2000-050	2"	50.80mm	0.056"	1.42mm	Knitted	85 PSI	5.86 BAR	N/A	0.25 lb./ft.	0.37 KG/m	50ft
4502-2500	2-1/2"	63.50mm	0.060"	1.52mm	Knitted	75 PSI	5.17 BAR	N/A	0.29 lb./ft.	0.43 KG/m	300ft
4502-3000	3"	76.20mm	0.062"	1.57mm	Knitted	70 PSI	4.83 BAR	N/A	0.39 lb./ft.	0.58 KG/m	300ft
4502-3000-050	3"	76.20mm	0.062"	1.57mm	Knitted	70 PSI	4.83 BAR	N/A	0.39 lb./ft.	0.58 KG/m	50ft
4502-4000	4"	101.60mm	0.062"	1.57mm	Knitted	70 PSI	4.83 BAR	N/A	0.60 lb./ft.	0.89 KG/m	300ft
4502-6000	6"	152.40mm	0.077"	1.96mm	Knitted	50 PSI	3.45 BAR	N/A	1.15 lb./ft.	1.71 KG/m	300ft
4502-8000	8"	203.20mm	0.089"	2.26mm	Knitted	45 PSI	3.10 BAR	N/A	1.20 lb./ft.	1.79 KG/m	300ft

Part Number	I.D.		Coupling	Reinforcement	Max. Working Press. @ 68 deg. F		Weight		Standard Length
	in.	mm			PSI	BAR	lb.	KG	ft
Cut - Coupled - Coiled - Tied
4502-1500-050AB	1-1/2"	38.10mm	1-1/2" AB Pin Lug (M x F)	Knitted	85 PSI	5.86 BAR	9.00 lb./ft.	13.30 KG/m	50ft
4502-2000-050AB	2"	50.80mm	2" AB Pin Lug (M x F)	Knitted	85 PSI	5.86 BAR	12.00 lb./ft.	17.80 KG/m	50ft
4502-3000-050AB	3"	76.20mm	3" AB Pin Lug (M x F)	Knitted	70 PSI	4.83 BAR	22.00 lb./ft.	32.60 KG/m	50ft
4502-1500-050CE	1-1/2"	38.10mm	1-1/2" Aluminum Cam Lock (C x E)	Knitted	85 PSI	5.86 BAR	9.00 lb./ft.	13.30 KG/m	50ft
4502-2000-050CE	2"	50.80mm	2" Aluminum Cam Lock (C x E)	Knitted	85 PSI	5.86 BAR	12.00 lb./ft.	17.80 KG/m	50ft
4502-3000-050CE	3"	76.20mm	3" Aluminum Cam Lock (C x E)	Knitted	70 PSI	4.83 BAR	22.00 lb./ft.	32.60 KG/m	50ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
