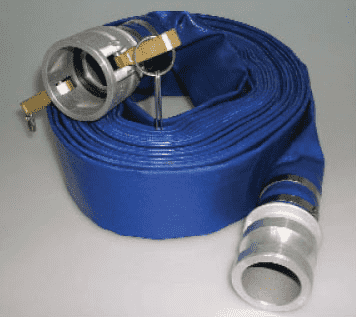

4502-3000-050CE by Jason Industrial | 4502 Series | Water Discharge Hose Assembly | 70 PSI | 3" ID | 3" Aluminum Cam Lock (C x E) | Blue | PVC | 50ft

4502-3000-050CE by Jason Industrial | 4502 Series | Water Discharge Hose Assembly | 70 PSI | 3" ID | 3" Aluminum Cam Lock (C x E) | Blue | PVC | 50ft

Save $44.32 Save $44.32
$155.12
$155.12 - $155.12
$155.12
$110.80
$110.80 - $110.80
$110.80

Jason Industrial Inc. Hose - Water Hose - 4502 Blue PVC Water Discharge Bulk Hose & Assemblies

Package Quantity: 50 FT

Specifications for Variant SKU: 4502-3000-050CE Jason
Series: 4502 Series
Hose Color(s): Blue
Internal Diameter: 3in
Tubing Construction: PVC
Cover Construction: PVC
Ends Configuration: 3in Male Cam & Groove, 3in Female Cam & Groove

SPECIFICATIONS

Application: For general purpose water discharge in construction, agriculture and drip irrigation. SAE Rating: N/A
Other Ratings: N/A Tube: Blue, PVC
Reinforcement: Knitted Polyester Yarn Cover: Blue, PVC
Temperature Range: -14 deg F (-26 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo WP XX (PSI) ID
Other Features:
  • Light and easy to handle
  • Rolls flat for convenient storage
  • Homogeneous construction eliminates tube and cover separation
  • Maximum bonding is due to the tube and cover being extruded simultaneously
Part Number I.D. Wall Thickness Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m ft
Uncoupled - Bulk
4502-1000 1" 25.40mm 0.056" 1.42mm Knitted 85 PSI 5.86 BAR N/A 0.10 lb./ft. 0.15 KG/m 300ft
4502-1500 1-1/2" 38.10mm 0.056" 1.42mm Knitted 85 PSI 5.86 BAR N/A 0.21 lb./ft. 0.31 KG/m 300ft
4502-1500-050 1-1/2" 38.10mm 0.056" 1.42mm Knitted 85 PSI 5.86 BAR N/A 0.21 lb./ft. 0.31 KG/m 50ft
4502-2000 2" 50.80mm 0.056" 1.42mm Knitted 85 PSI 5.86 BAR N/A 0.25 lb./ft. 0.37 KG/m 300ft
4502-2000-050 2" 50.80mm 0.056" 1.42mm Knitted 85 PSI 5.86 BAR N/A 0.25 lb./ft. 0.37 KG/m 50ft
4502-2500 2-1/2" 63.50mm 0.060" 1.52mm Knitted 75 PSI 5.17 BAR N/A 0.29 lb./ft. 0.43 KG/m 300ft
4502-3000 3" 76.20mm 0.062" 1.57mm Knitted 70 PSI 4.83 BAR N/A 0.39 lb./ft. 0.58 KG/m 300ft
4502-4000 4" 101.60mm 0.062" 1.57mm Knitted 70 PSI 4.83 BAR N/A 0.60 lb./ft. 0.89 KG/m 300ft
4502-6000 6" 152.40mm 0.077" 1.96mm Knitted 50 PSI 3.45 BAR N/A 1.15 lb./ft. 1.71 KG/m 300ft
4502-8000 8" 203.20mm 0.089" 2.26mm Knitted 45 PSI 3.10 BAR N/A 1.20 lb./ft. 1.79 KG/m 300ft
Part Number I.D. Coupling Reinforcement Max. Working Press. @ 68 deg. F Weight Standard Length
in. mm PSI BAR lb. KG ft
Cut - Coupled - Coiled - Tied
4502-1500-050AB 1-1/2" 38.10mm 1-1/2" AB Pin Lug (M x F) Knitted 85 PSI 5.86 BAR 9.00 lb./ft. 13.30 KG/m 50ft
4502-3000-050AB 3" 76.20mm 3" AB Pin Lug (M x F) Knitted 70 PSI 4.83 BAR 22.00 lb./ft. 32.60 KG/m 50ft
4502-1500-050CE 1-1/2" 38.10mm 1-1/2" Aluminum Cam Lock (C x E) Knitted 85 PSI 5.86 BAR 9.00 lb./ft. 13.30 KG/m 50ft
4502-2000-050CE 2" 50.80mm 2" Aluminum Cam Lock (C x E) Knitted 85 PSI 5.86 BAR 12.00 lb./ft. 17.80 KG/m 50ft
4502-3000-050CE 3" 76.20mm 3" Aluminum Cam Lock (C x E) Knitted 70 PSI 4.83 BAR 22.00 lb./ft. 32.60 KG/m 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
