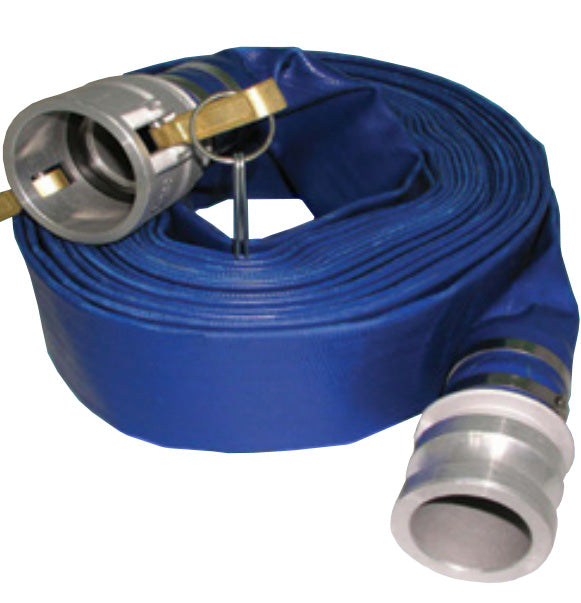

4502-2000-050CE by Jason Industrial | 4502 Series | Lay Flat Water Discharge Hose Assembly | PVC | 2" ID | 85 PSI | 2" Aluminum Cam Lock (C x E) | Blue | 50ft

Save $36.60

$107.75

$107.75 - $107.75

$107.75

$71.15

$71.15 - $71.15

$71.15

Jason Industrial
4502 Series | Lay Flat Water Discharge Hose Assembly | Blue

For general purpose water discharge in construction, agriculture and drip irrigation.

Package Quantity: 50 FT

Specifications for Variant SKU: 4502-2000-050CE Jason
Series:	4502 Series
Hose Color(s):	Blue
Internal Diameter:	2in
Tubing Construction:	PVC
Cover Construction:	PVC
Shape (Orientation):	Straight
Ends Configuration:	2in Male Cam & Groove, 2in Female Cam & Groove
Material(s):	Aluminum

Water Hose

Jason Industrial | 4502 Series
Lay Flat Water Discharge Hose Assembly

1

What is this product used for?

For general purpose water discharge in construction, agriculture and drip irrigation.

2

What are the key specifications?

Tube

PVC

Cover

PVC

Reinforcement

Knitted Polyester Yarn

Temperature Range

-14°F (-26°C) to +150°F (+66°C)

Colors

Blue

Branding

Jason logo WP XX (PSI) ID.

Specifications

N/A

Design Factor

3:1

3

What are the main product features?

Resistant to water-based ag fertilizers.
Resistant to salt water.
Cover is abrasion and weather resistant.
Flexible and economical.

4

Which sizes or configurations are available?

Part Number	ID		Wall Thickness		Reinfor- cement	Max. Working Pressure @ 68° F		Vacuum @ 68°F	Weight (lbs/ft)	Length
Part Number	in	mm	in	mm	Reinfor- cement	PSI	BAR	in of Hg	Weight (lbs/ft)	Length
4502-1000	1"	25.40mm	0.056"	1.42mm	Knitted	85 PSI	5.86 BAR	—	0.10lbs	300ft
4502-1500	1-1/2"	38.10mm	0.056"	1.42mm	Knitted	85 PSI	5.86 BAR	—	0.21lbs	300ft
4502-2000	2"	50.80mm	0.056"	1.42mm	Knitted	85 PSI	5.86 BAR	—	0.25lbs	300ft
4502-2500	2-1/2"	63.50mm	0.060"	1.52mm	Knitted	75 PSI	5.17 BAR	—	0.29lbs	300ft
4502-3000	3"	76.20mm	0.062"	1.57mm	Knitted	70 PSI	4.83 BAR	—	0.39lbs	300ft
4502-4000	4"	101.60mm	0.062"	1.57mm	Knitted	70 PSI	4.83 BAR	—	0.60lbs	300ft
4502-6000	6"	152.40mm	0.077"	1.96mm	Knitted	50 PSI	3.45 BAR	—	1.15lbs	300ft
4502-8000	8"	203.20mm	0.089"	2.26mm	Knitted	45 PSI	3.10 BAR	—	1.20lbs	300ft

WARNING: Working pressure (W.P.) is temperature dependent.

5

Hose Assemblies - Cut | Coupled | Coiled | Tied

Part Number	ID		Length	Coupling	Reinfor- cement	Max. Working Pressure @ 68° F		Weight (lbs)
Part Number	in	mm	Length	Coupling	Reinfor- cement	PSI	BAR	Weight (lbs)
4502-1500-050AB	1-1/2"	38.10mm	50ft	1-1/2" I.D. AB Pin Lug (M x F)	Knitted	85 PSI	5.86 BAR	9.00lbs
4502-2000-050AB	2"	50.80mm	50ft	2" I.D. AB Pin Lug (M x F)	Knitted	85 PSI	5.86 BAR	12.00lbs
4502-3000-050AB	3"	76.20mm	50ft	3" I.D. AB Pin Lug (M x F)	Knitted	70 PSI	4.83 BAR	22.00lbs
4502-1500-050CE	1-1/2"	38.10mm	50ft	1-1/2" I.D. Aluminum Cam Lock (C x E)	Knitted	85 PSI	5.86 BAR	9.00lbs
4502-2000-050CE	2"	50.80mm	50ft	2" I.D. Aluminum Cam Lock (C x E)	Knitted	85 PSI	5.86 BAR	12.00lbs
4502-3000-050CE	3"	76.20mm	50ft	3" I.D. Aluminum Cam Lock (C x E)	Knitted	70 PSI	4.83 BAR	22.00lbs
4502-4000-050CE	4"	101.60mm	50ft	4" I.D. Aluminum Cam Lock (C x E)	Knitted	70 PSI	4.83 BAR	32.00lbs
4502-6000-050CE	6"	152.40mm	50ft	6" I.D. Aluminum Cam Lock (C x E)	Knitted	50 PSI	3.45 BAR	52.00lbs

WARNING: Working pressure (W.P.) is temperature dependent.

i

No by the foot sales. This is a Packaged Length product.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
