4502-3000 by Jason Industrial | 4502 Series | Lay Flat Water Discharge Hose | PVC | 3" ID | 70 PSI | Blue | 300ft
4502-3000 by Jason Industrial | 4502 Series | Lay Flat Water Discharge Hose | PVC | 3" ID | 70 PSI | Blue | 300ft
4502-3000 by Jason Industrial | 4502 Series | Lay Flat Water Discharge Hose | PVC | 3" ID | 70 PSI | Blue | 300ft

4502-3000 by Jason Industrial | 4502 Series | Lay Flat Water Discharge Hose | PVC | 3" ID | 70 PSI | Blue | 300ft

Save $190.28 Save $190.28
$607.48
$607.48 - $607.48
$607.48
$417.20
$417.20 - $417.20
$417.20

Jason Industrial
4502 Series | Lay Flat Water Discharge Hose | Blue

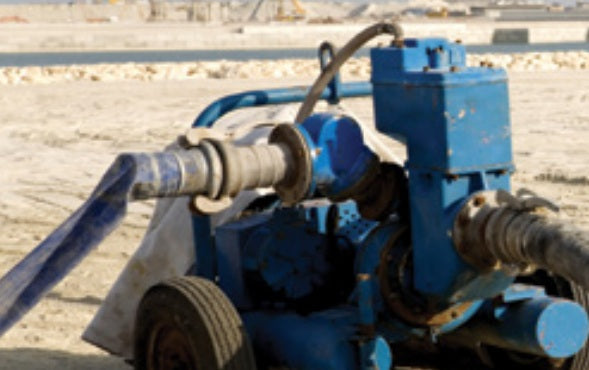

For general purpose water discharge in construction, agriculture and drip irrigation.

Package Quantity: 300 FT

Specifications for Variant SKU: 4502-3000 Jason | 300 |
Series: 4502 Series
Hose Color(s): Blue
Internal Diameter: 3in
Tubing Construction: PVC
Cover Construction: PVC
Water Hose

Jason Industrial | 4502 Series

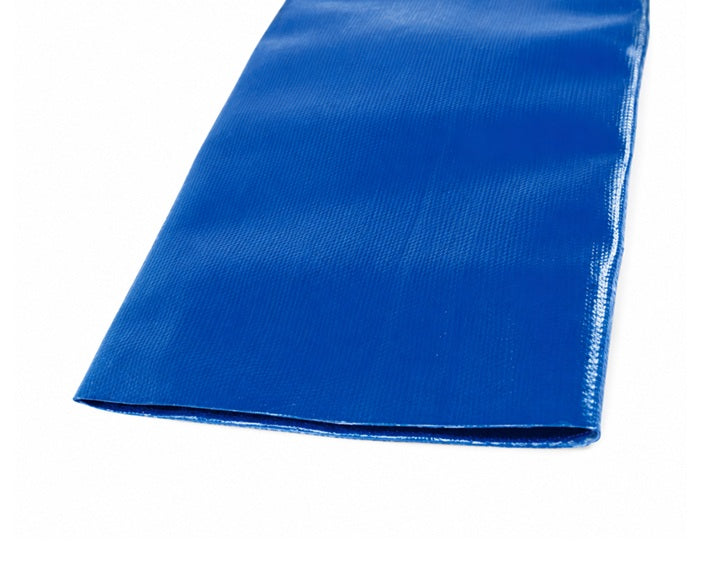

Lay Flat Water Discharge Hose

1

What is this product used for?
  • For general purpose water discharge in construction, agriculture and drip irrigation.
2

What are the key specifications?
Tube

PVC

Cover

PVC

Reinforcement

Knitted Polyester Yarn

Temperature Range

-14°F (-26°C) to +150°F (+66°C)

Colors

Blue

Branding

Jason logo WP XX (PSI) ID.

Specifications

N/A

Design Factor

3:1

3

What are the main product features?
  • Light and easy to handle.
  • Rolls flat for convenient storage.
  • Homogeneous construction eliminates tube & cover separation.
  • Maximum bonding as tube & cover are extruded simultaneously.
4

Which sizes or configurations are available?
Part Number ID Wall
Thickness		 Reinfor-
cement		 Max. Working
Pressure @ 68° F		 Vacuum
@ 68°F		 Weight
(lbs/ft)		 Length
in mm in mm PSI BAR in of Hg
4502-1000 1" 25.40mm 0.056" 1.42mm Knitted 85 PSI 5.86 BAR — 0.10lbs 300ft
4502-1500 1-1/2" 38.10mm 0.056" 1.42mm Knitted 85 PSI 5.86 BAR — 0.21lbs 300ft
4502-2000 2" 50.80mm 0.056" 1.42mm Knitted 85 PSI 5.86 BAR — 0.25lbs 300ft
4502-2500 2-1/2" 63.50mm 0.060" 1.52mm Knitted 75 PSI 5.17 BAR — 0.29lbs 300ft
4502-3000 3" 76.20mm 0.062" 1.57mm Knitted 70 PSI 4.83 BAR — 0.39lbs 300ft
4502-4000 4" 101.60mm 0.062" 1.57mm Knitted 70 PSI 4.83 BAR — 0.60lbs 300ft
4502-6000 6" 152.40mm 0.077" 1.96mm Knitted 50 PSI 3.45 BAR — 1.15lbs 300ft
4502-8000 8" 203.20mm 0.089" 2.26mm Knitted 45 PSI 3.10 BAR — 1.20lbs 300ft
WARNING: Working pressure (W.P.) is temperature dependent.
5

Hose Assemblies - Cut | Coupled | Coiled | Tied
Part Number ID Length Coupling Reinfor-
cement		 Max. Working
Pressure @ 68° F		 Weight
(lbs)
in mm PSI BAR
4502-1500-050AB 1-1/2" 38.10mm 50ft 1-1/2" I.D. AB Pin Lug (M x F) Knitted 85 PSI 5.86 BAR 9.00lbs
4502-2000-050AB 2" 50.80mm 50ft 2" I.D. AB Pin Lug (M x F) Knitted 85 PSI 5.86 BAR 12.00lbs
4502-3000-050AB 3" 76.20mm 50ft 3" I.D. AB Pin Lug (M x F) Knitted 70 PSI 4.83 BAR 22.00lbs
4502-1500-050CE 1-1/2" 38.10mm 50ft 1-1/2" I.D. Aluminum Cam Lock (C x E) Knitted 85 PSI 5.86 BAR 9.00lbs
4502-2000-050CE 2" 50.80mm 50ft 2" I.D. Aluminum Cam Lock (C x E) Knitted 85 PSI 5.86 BAR 12.00lbs
4502-3000-050CE 3" 76.20mm 50ft 3" I.D. Aluminum Cam Lock (C x E) Knitted 70 PSI 4.83 BAR 22.00lbs
4502-4000-050CE 4" 101.60mm 50ft 4" I.D. Aluminum Cam Lock (C x E) Knitted 70 PSI 4.83 BAR 32.00lbs
4502-6000-050CE 6" 152.40mm 50ft 6" I.D. Aluminum Cam Lock (C x E) Knitted 50 PSI 3.45 BAR 52.00lbs
WARNING: Working pressure (W.P.) is temperature dependent.
i
No by the foot sales. This is a Packaged Length product.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
