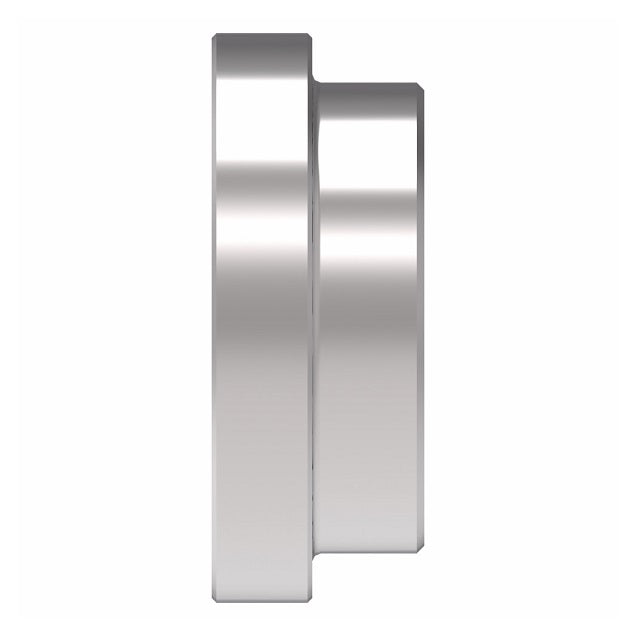

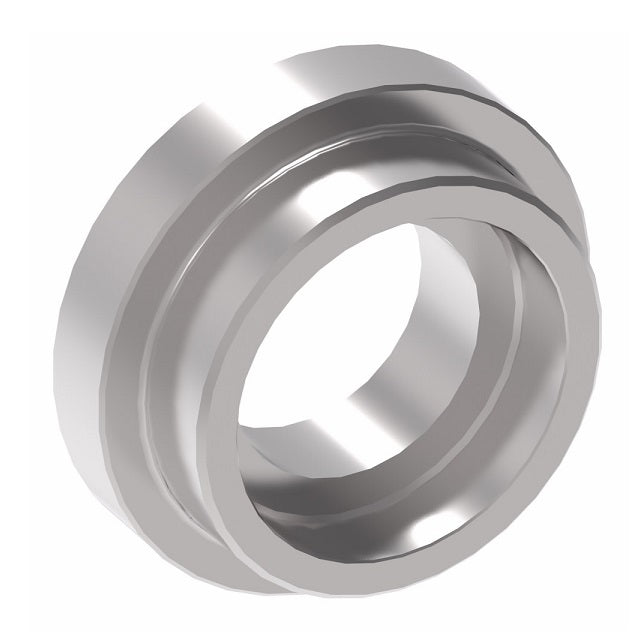

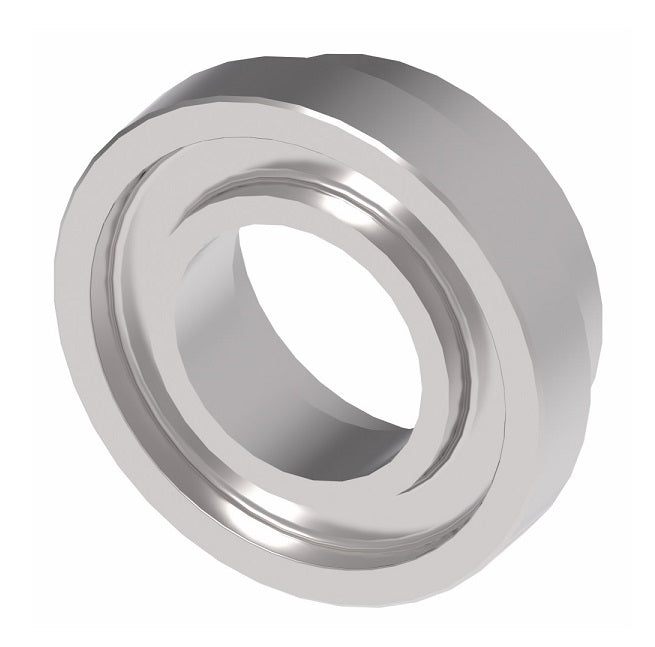

4624-16-20S Aeroquip by Danfoss | Braze/Solid Flanged Head SAE Code 61 Adapter | Standard Pressure Series | -16 Braze End x -20 Code 61 Flange | Steel
4624-16-20S Aeroquip by Danfoss | Braze/Solid Flanged Head SAE Code 61 Adapter | Standard Pressure Series | -16 Braze End x -20 Code 61 Flange | Steel
4624-16-20S Aeroquip by Danfoss | Braze/Solid Flanged Head SAE Code 61 Adapter | Standard Pressure Series | -16 Braze End x -20 Code 61 Flange | Steel
4624-16-20S Aeroquip by Danfoss | Braze/Solid Flanged Head SAE Code 61 Adapter | Standard Pressure Series | -16 Braze End x -20 Code 61 Flange | Steel

4624-16-20S Aeroquip by Danfoss | Braze/Solid Flanged Head SAE Code 61 Adapter | Standard Pressure Series | -16 Braze End x -20 Code 61 Flange | Steel

$43.83 - $43.83
$43.83
$43.83 - $43.83
$43.83

Aeroquip® by Danfoss
Braze/Solid Flanged Head SAE Code 61 Adapter
Braze End x Code 61 Flange
Standard Pressure Series
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4624-16-20S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Braze End, 1-1/4in Code 61 Flange
Material(s): Steel
Part Number Split Flange Size Tube O.D. A B
4624-8S 1/2" 0.50" 0.25" 0.50"
4624-12S 3/4" 0.75" 0.31" 0.75"
4624-12-8S 3/4" 0.50" 0.25" 0.50"
4624-16S 1" 1.00" 0.31" 1.00"
4624-16-12S 1" 0.75" 0.31" 0.75"
4624-16-20S 1" 1.25" 0.31" 1.25"
4624-20S 1-1/4" 1.25" 0.31" 1.25"
4624-20-12S 1-1/4" 0.75" 0.31" 0.75"
4624-20-16S 1-1/4" 1.00" 0.31" 1.00"
4624-20-24S 1-1/4" 1.50" 0.31" 1.50"
4624-24S 1-1/2" 1.50" 0.38" 1.50"
4624-24-16S 1-1/2" 1.00" 0.38" 1.00"
4624-24-20S 1-1/2" 1.25" 0.31" 1.25"
4624-32S 2" 2.00" 0.38" 2.00"
4624-32-16S 2" 1.00" 0.28" 1.00"
4624-32-20S 2" 1.25" 0.38" 1.25"
4624-32-24S 2" 1.50" 0.38" 1.50"
4624-40S - - - -
4624-40-32S 2-1/2" 2.00" 0.44" 2.00"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
