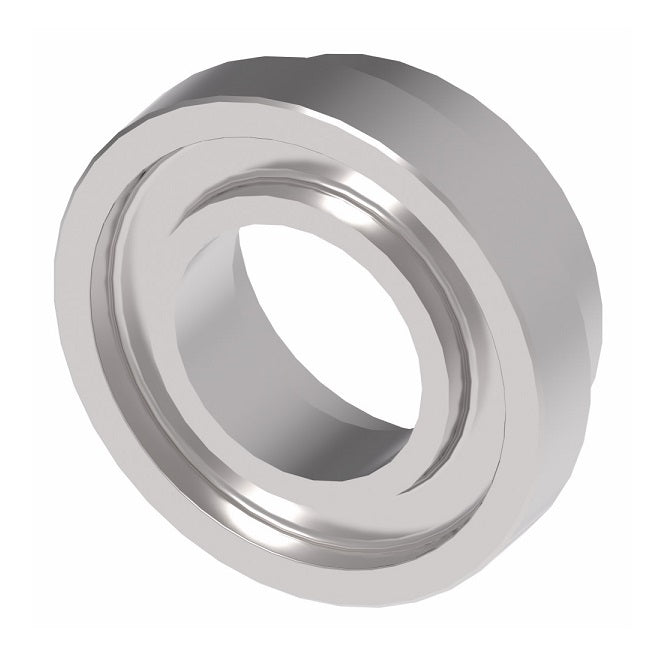

4624-20-24S Aeroquip by Danfoss | Braze/Solid Flanged Head SAE Code 61 Adapter | Standard Pressure Series | -20 Braze End x -24 Code 61 Flange | Steel
4624-20-24S Aeroquip by Danfoss | Braze/Solid Flanged Head SAE Code 61 Adapter | Standard Pressure Series | -20 Braze End x -24 Code 61 Flange | Steel
4624-20-24S Aeroquip by Danfoss | Braze/Solid Flanged Head SAE Code 61 Adapter | Standard Pressure Series | -20 Braze End x -24 Code 61 Flange | Steel
4624-20-24S Aeroquip by Danfoss | Braze/Solid Flanged Head SAE Code 61 Adapter | Standard Pressure Series | -20 Braze End x -24 Code 61 Flange | Steel

4624-20-24S Aeroquip by Danfoss | Braze/Solid Flanged Head SAE Code 61 Adapter | Standard Pressure Series | -20 Braze End x -24 Code 61 Flange | Steel

$28.32 - $28.32
$28.32
$28.32 - $28.32
$28.32

Aeroquip® by Danfoss
Braze/Solid Flanged Head SAE Code 61 Adapter
Braze End x Code 61 Flange
Standard Pressure Series
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4624-20-24S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Braze End, 1-1/2in Code 61 Flange
Material(s): Steel
Part Number Split Flange Size Tube O.D. A B
4624-8S 1/2" 0.50" 0.25" 0.50"
4624-12S 3/4" 0.75" 0.31" 0.75"
4624-12-8S 3/4" 0.50" 0.25" 0.50"
4624-16S 1" 1.00" 0.31" 1.00"
4624-16-12S 1" 0.75" 0.31" 0.75"
4624-16-20S 1" 1.25" 0.31" 1.25"
4624-20S 1-1/4" 1.25" 0.31" 1.25"
4624-20-12S 1-1/4" 0.75" 0.31" 0.75"
4624-20-16S 1-1/4" 1.00" 0.31" 1.00"
4624-20-24S 1-1/4" 1.50" 0.31" 1.50"
4624-24S 1-1/2" 1.50" 0.38" 1.50"
4624-24-16S 1-1/2" 1.00" 0.38" 1.00"
4624-24-20S 1-1/2" 1.25" 0.31" 1.25"
4624-32S 2" 2.00" 0.38" 2.00"
4624-32-16S 2" 1.00" 0.28" 1.00"
4624-32-20S 2" 1.25" 0.38" 1.25"
4624-32-24S 2" 1.50" 0.38" 1.50"
4624-40S - - - -
4624-40-32S 2-1/2" 2.00" 0.44" 2.00"
