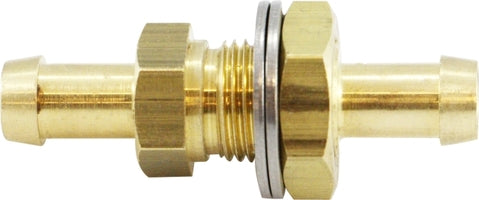

46541 (46-541) Midland Marine Bulkhead Fitting - 3/8" Hose ID - 2.37" Length - Brass

46541 by Midland | Marine Bulkhead Fitting | 3/8" Hose ID | 2.37" Length | Brass

Save $1.45 Save $1.45
$20.49
$20.49 - $20.49
$20.49
$19.04
$19.04 - $19.04
$19.04

Midland Industries
Brass Fitting - Bulkhead Fitting - Marine Bulkhead

Inventory @ Manufacturers Warehouse: 189 Units
Specifications for Variant SKU: 46541 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 3/8in Hose Barb, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Part Number A Length (in.)
46540
(46-540)		 5/16 Hose ID 2.37"
46541
(46-541)		 3/8" Hose ID 2.37"
