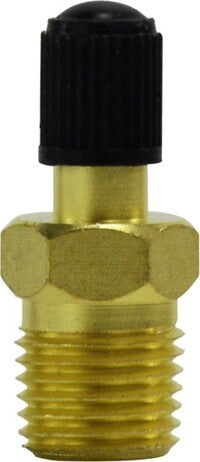

46622 (46-622) Midland Pneumatic Tank & Vent Valve - 1/8" NPT x Inflation Needle Thread - 1.46" Long Spring Core - Brass

46622 by Midland | Pneumatic Tank & Vent Valve | 1/8" NPT x Inflation Needle Thread | 1.46" Long Spring Core | Brass

Save $4.87 Save $4.87
$12.17
$12.17 - $12.17
$12.17
$7.30
$7.30 - $7.30
$7.30

Midland Industries
Pneumatic Tank Valve - Tank & Vent Valve - Brass

Three standard styles of valve bodies, complete with short core, for air lifts, water pumps, vacuum, pressurized containers, air jacks, and other pneumatic devices.

Inventory @ Manufacturers Warehouse: 1814 Units
Specifications for Variant SKU: 46622 Midland
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPT
Material(s): Brass
Features:
  • 300 PSI and cracking pressure 80 PSI
  • INT = Inflation needle thread (.305 in. OD x 32 threads per inch)
Part Number Size Description
46620
(46-620)		 1/8" NPT x INT 1/8" NPT - 0.9" Long Spring Core, 7/16" Hex
46621
(46-621)		 1/8" NPT x INT 1/8" NPT - 1.207" Long Spring Core, 7/16" Hex
46622
(46-622)		 1/8" NPT x INT 1/8" NPT - 1.46" Long Spring Core, 9/16" Hex (with Black Cap)
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
