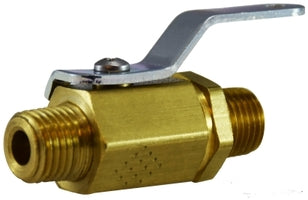

46910 (46-910) Midland Miniature Ball Valve - 1/8" Male Pipe x 1/8" Male Pipe - Brass

46910 by Midland | Miniature Ball Valve | 1/8" Male Pipe x 1/8" Male Pipe | Brass

Save $15.56 Save $15.56
$38.90
$38.90 - $38.90
$38.90
$23.34
$23.34 - $23.34
$23.34

Midland Industries
Brass Fitting - Miniature Ball Valve - Male Pipe x Male Pipe - Brass

Ideal for tight, confined areas, or when routing aesthetics are desired. Applications include water, oil, and air pressure systems.

Inventory @ Manufacturers Warehouse: 20 Units
Specifications for Variant SKU: 46910 Midland
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPT, 1/8in Male NPT, Some Ends Match
Material(s): Brass
Seal Material(s): Viton
Features:
  • Working Pressure up to 1000 P.S.I.G.
  • ASTM B-16 Corrosion Resistant brass body.
  • Non-Adjusting Viton O-Ring stem seal design never needs tightening.
  • Highly inert Teflon seats.
  • Long life nickel plated brass ball.
  • Blow-Out proof stem for safety.
  • Temperature: -40°F to 300°F
  • 1/4 turn instantaneous on-off operation.
  • Quarter turn handle design.
Part Number Male Pipe x Male Pipe
46910
(46-910)		 1/8" x 1/8"
46912
(46-912)		 1/4" x 1/4"

Dimension Data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
