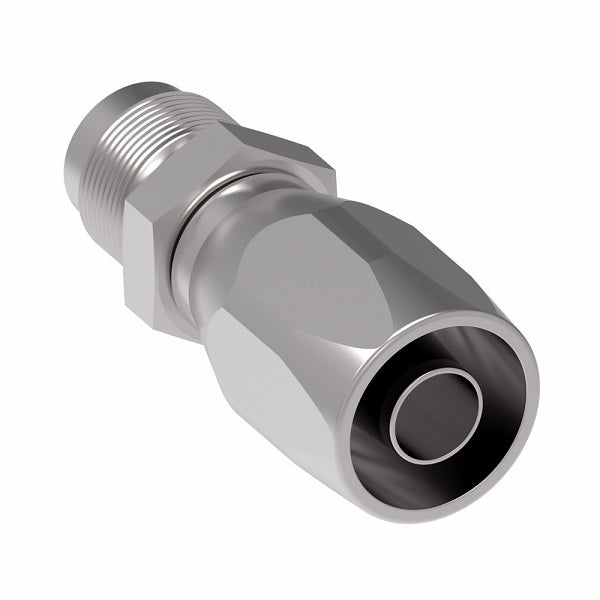

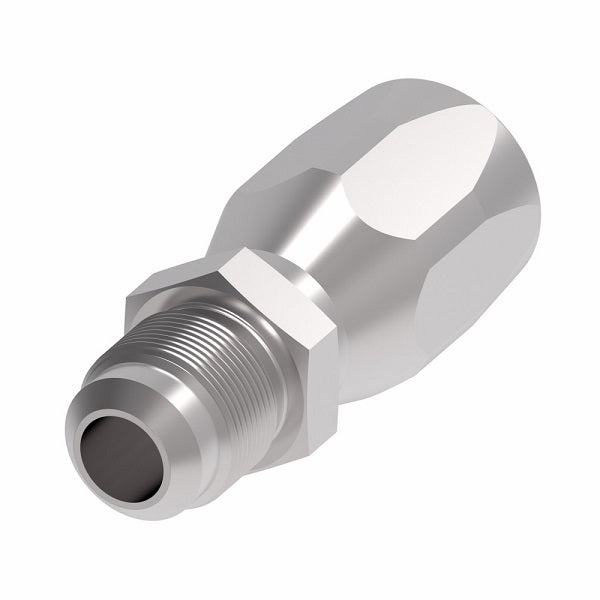

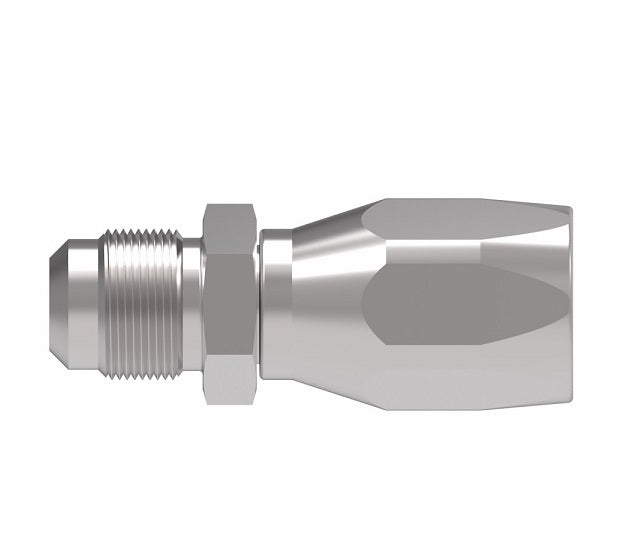

4725-10S Aeroquip by Danfoss | Male 37° JIC Flare 100R2 Skive Style Reusable Hose Fitting | -10 Male 37° JIC Flare x -10 Reusable Hose End | Steel

4725-10S Aeroquip by Danfoss | Male 37° JIC Flare 100R2 Skive Style Reusable Hose Fitting | -10 Male 37° JIC Flare x -10 Reusable Hose End | Steel

Name: 4725-10S Aeroquip by Danfoss | Male 37° JIC Flare 100R2 Skive Style Reusable Hose Fitting | -10 Male 37° JIC Flare x -10 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 4725-10S Danfoss
Price: 208.47 USD
Availability: InStock

$208.47 - $208.47

$208.47

$208.47 - $208.47

$208.47

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Male 37° JIC Flare - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4725-10S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male JIC, 5/8in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	2766 Series \| 2781 Series \| FC195 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with hose: 2766. Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ
4725-4-4S	-04	7/16-20	2.49"	1.25"	0.17"
4725-6-4S	-04	9/16-18	2.55"	1.33"	0.17"
4725-6-6S	-06	9/16-18	2.75"	1.28"	0.30"
4725-8-6S	-06	3/4-16	2.91"	1.44"	0.31"
4725-8-8S	-08	3/4-16	2.99"	1.48"	0.39"
4725-10S	-10	7/8-14	3.19"	1.64"	0.51"
4725-16	-16	1-5/16-12	4.38"	2.33"	0.82"
