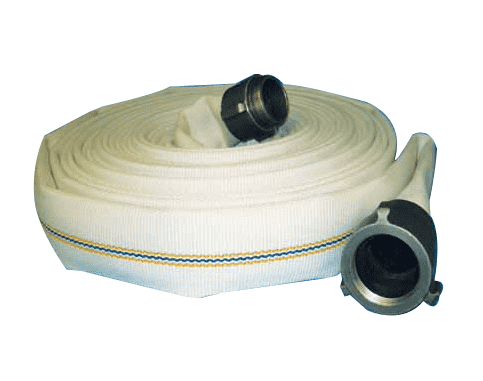

4735-0150-050ERNPS by Jason Industrial | 4735 Series | MSHA Fire Hose Assembly | 300 PSI Serv. Press. | 1-1/2" ID | NPS EXP Ring | White | 50ft

Save $96.99

$339.46

$339.46 - $339.46

$339.46

$242.47

$242.47 - $242.47

$242.47

Jason Industrial Inc. Hose - Water Hose - 4735 MSHA Fire Hose Assembly - White

Package Quantity: 50 FT

Specifications for Variant SKU: 4735-0150-050ERNPS Jason
Series:	4735 Series
Hose Color(s):	White/Off-White
Internal Diameter:	1.50in
Tubing Construction:	Chloroprene
Cover Construction:	Polyester Textile Braid
Ends Configuration:	1-1/2in Female NPS, 1-1/2in Male NPS
Applicable Specs & Approvals:	Applicable MSHA Standards
Special Properties:	Pin Pricked Hose Cover

SPECIFICATIONS

Other Features:
Application:	Underground mining fire hose.	SAE Rating:	N/A
Other Ratings:	MSHA rating 18-FHA08001	Tube:	Chloroprene (CR)
Reinforcement:	N/A	Cover:	Polyester
Temperature Range:	-25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 300 PSI Test, MSHA #18-FHA08001
Meets MSHA rating 18-FHA08001, therefore resistant to fire. Rolls flat for easy storage Couplings are anodized aluminum M x F expansion ring with rocker lugs 100% polyester jacket, which is free from defects, twists, knots and irregularities

Part Number	I.D.		Coupling	Reinforcement Plies	Service Pressure		Test Pressure		Vacuum @ 68 deg. F	Weight		Standard Length
	in.	mm			PSI	BAR	PSI	BAR	inHg	lb./ft.	KG/m	ft
Coupled
4735-0150-050ERNPS	1-1/2"	38.10mm	Male NPS x Female NPS Expansion Ring with Rocker Lug	N/A	300 PSI	20.68 BAR	900 PSI	62.04 BAR	N/A	0.23 lb./ft.	0.34 KG/m	50ft
4735-0150-050ERNST	1-1/2"	38.10mm	Male NST x Female NST Expansion Ring with Rocker Lug	N/A	300 PSI	20.68 BAR	900 PSI	62.04 BAR	N/A	0.23 lb./ft.	0.34 KG/m	50ft
4735-0150-100ERNPS	1-1/2"	38.10mm	Male NPS x Female NPS Expansion Ring with Rocker Lug	N/A	300 PSI	20.68 BAR	900 PSI	62.04 BAR	N/A	0.23 lb./ft.	0.34 KG/m	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
