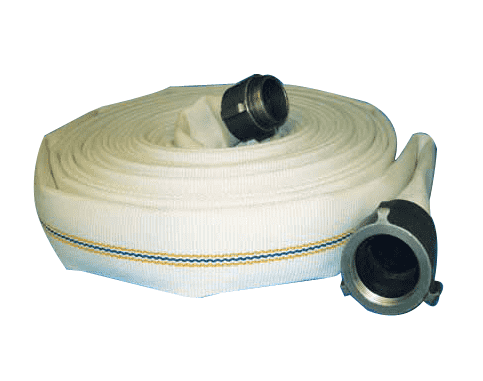

4735-0150-100ERNPS by Jason Industrial | 4735 Series | MSHA Fire Hose Assembly | 300 PSI Serv. Press. | 1-1/2" ID | NPS EXP Ring | White | 100ft

Save $181.84

$636.45

$636.45 - $636.45

$636.45

$454.61

$454.61 - $454.61

$454.61

Jason Industrial Inc. Hose - Water Hose - 4735 MSHA Fire Hose Assembly - White

Package Quantity: 100 FT

Specifications for Variant SKU: 4735-0150-100ERNPS Jason
Series:	4735 Series
Hose Color(s):	White/Off-White
Internal Diameter:	1.50in
Tubing Construction:	Chloroprene
Cover Construction:	Polyester Textile Braid
Ends Configuration:	1-1/2in Female NPS, 1-1/2in Male NPS
Applicable Specs & Approvals:	Applicable MSHA Standards
Special Properties:	Pin Pricked Hose Cover

SPECIFICATIONS

Other Features:
Application:	Underground mining fire hose.	SAE Rating:	N/A
Other Ratings:	MSHA rating 18-FHA08001	Tube:	Chloroprene (CR)
Reinforcement:	N/A	Cover:	Polyester
Temperature Range:	-25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 300 PSI Test, MSHA #18-FHA08001
Meets MSHA rating 18-FHA08001, therefore resistant to fire. Rolls flat for easy storage Couplings are anodized aluminum M x F expansion ring with rocker lugs 100% polyester jacket, which is free from defects, twists, knots and irregularities

Part Number	I.D.		Coupling	Reinforcement Plies	Service Pressure		Test Pressure		Vacuum @ 68 deg. F	Weight		Standard Length
	in.	mm			PSI	BAR	PSI	BAR	inHg	lb./ft.	KG/m	ft
Coupled
4735-0150-050ERNPS	1-1/2"	38.10mm	Male NPS x Female NPS Expansion Ring with Rocker Lug	N/A	300 PSI	20.68 BAR	900 PSI	62.04 BAR	N/A	0.23 lb./ft.	0.34 KG/m	50ft
4735-0150-050ERNST	1-1/2"	38.10mm	Male NST x Female NST Expansion Ring with Rocker Lug	N/A	300 PSI	20.68 BAR	900 PSI	62.04 BAR	N/A	0.23 lb./ft.	0.34 KG/m	50ft
4735-0150-100ERNPS	1-1/2"	38.10mm	Male NPS x Female NPS Expansion Ring with Rocker Lug	N/A	300 PSI	20.68 BAR	900 PSI	62.04 BAR	N/A	0.23 lb./ft.	0.34 KG/m	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
