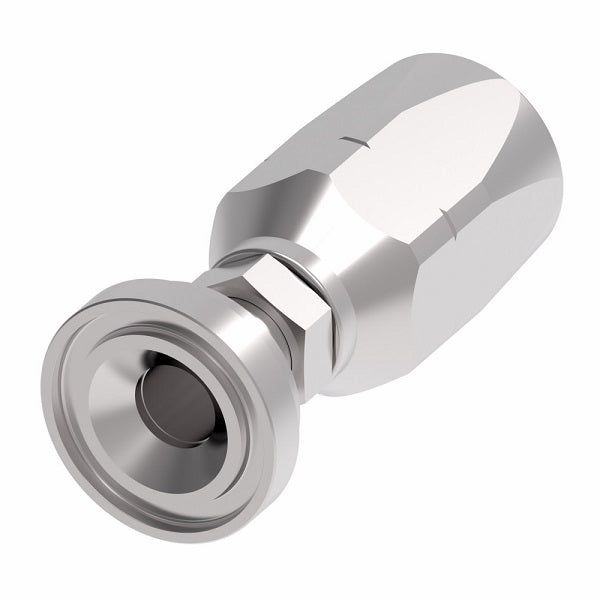

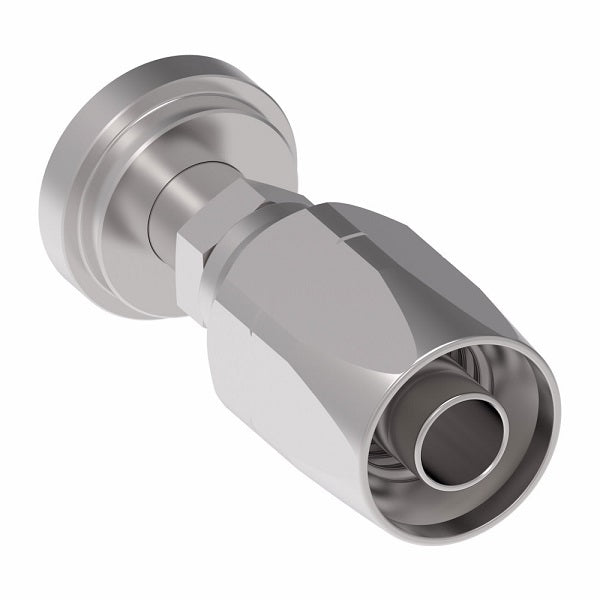

Name: 4744-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 4744-20S Danfoss
Price: 185.28 USD
Availability: InStock

$185.28 - $185.28

$185.28

$185.28 - $185.28

$185.28

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Code 61 Split Flange - Straight

SAE J518

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4744-20S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Code 61 Flange, 1-1/4in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	2766 Series \| 2781 Series \| FC195 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with hose: 2766. Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Flange Head Diameter	A	D	EØ
4744-12S	-12	1.50"	3.53"	1.66"	0.61"
4744-16S	-16	1.75	4.65"	2.59"	0.82"
4744-20S	-20	2.00"	5.25"	2.93"	1.05"
4744-24-20S	-20	2.38"	5.25"	2.93"	1.05"
4744-32S	-32	2.81"	6.37"	3.93"	1.75"
