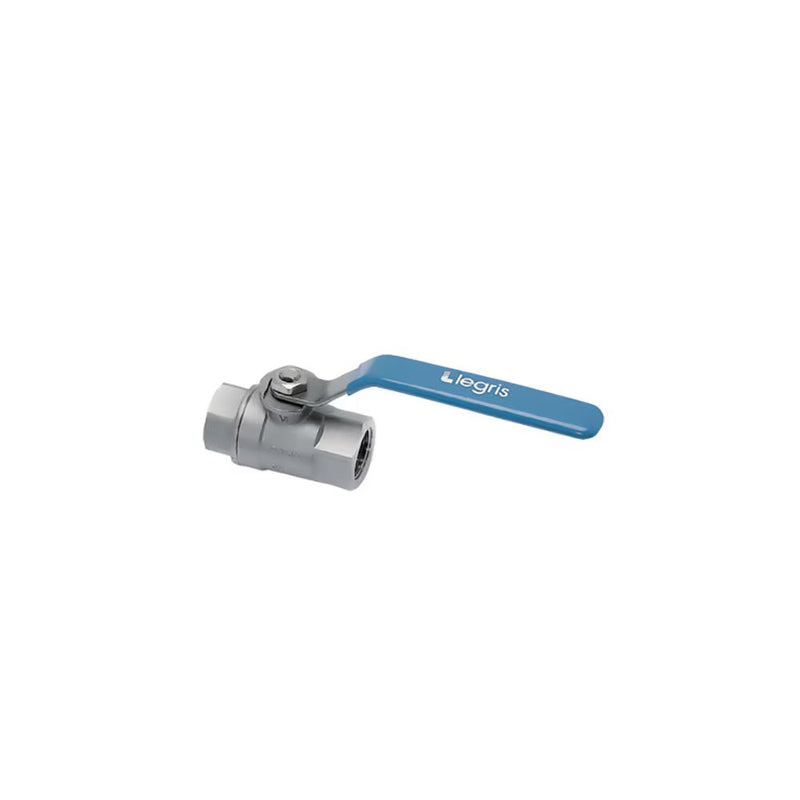

4810 10 17 by Parker | Legris In-Line Ball Valve | 3/8" Female BSPP Thread | Straight | 316L Stainless Steel | Pack of 5

Save $8.05

$441.85

$441.85 - $441.85

$441.85

$433.80

$433.80 - $433.80

$433.80

by Parker Hannifin
Stainless Steel Series:4810 2/2 In-Line Ball Valve, Female BSPP Thread

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 4810 10 17 Parker \| 5 \|
Series:	4810 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Seal Material(s):	PTFE
Special Properties:	Environmental Resistance, Pressure Resistance, Temperature Resistance

Technical Characteristics:	Compatible Fluids: All fluids Working Pressure: 0 to 65 bar Working Temperature: -20°C to +150°C
Advantages:	Chemical compatibility High temperature operation: up to +150°C 3 straight versions: - Compact type cannot be disassembled - 3-piece can be disassembled - Light series for more compactness
Regulations:	PED RoHS REACH
Component Materials:	Body: 316L Stainless Steel (4832-4812-4810) or 303 Stainless Steel (0465) Stem seal: PTFE Seat seals: PTFE Lever: Nickel-plated brass (0465) or 430 stainless steel (4832-4812-4810) Stem: 316L Stainless Steel (4832-4812-4810) or 303 Stainless Steel (0465) Wear-compensation seal: 2 PTFE seals (0465) 1 FKM seal (4832-4812-4810) Locking nut and Locking screw: Zinc plated steel Ball: 316L stainless steel (4832-4812-4810) or 303 stainless steel (0465)


Part Number	Diameter Nominal (DN)	C	E	G	H	L	M	Kg
4810 08 13	8 mm	1/4"	10 mm	30 mm	44.5 mm	53.5 mm	110.5 mm	.206 Kg
4810 10 17	10 mm	3/8"	10 mm	30 mm	44.5 mm	53.5 mm	110.5 mm	.190 Kg
4810 15 21	15 mm	1/2"	13 mm	32.5 mm	47 mm	60 mm	110.5 mm	.245 Kg
4810 20 27	20 mm	3/4"	14 mm	40 mm	54.5 mm	70 mm	131.5 mm	.418 Kg
4810 25 34	25 mm	1"	17 mm	49 mm	58.5 mm	79 mm	131.5 mm	.648 Kg

Threads conformed to ISO 228/1-G
