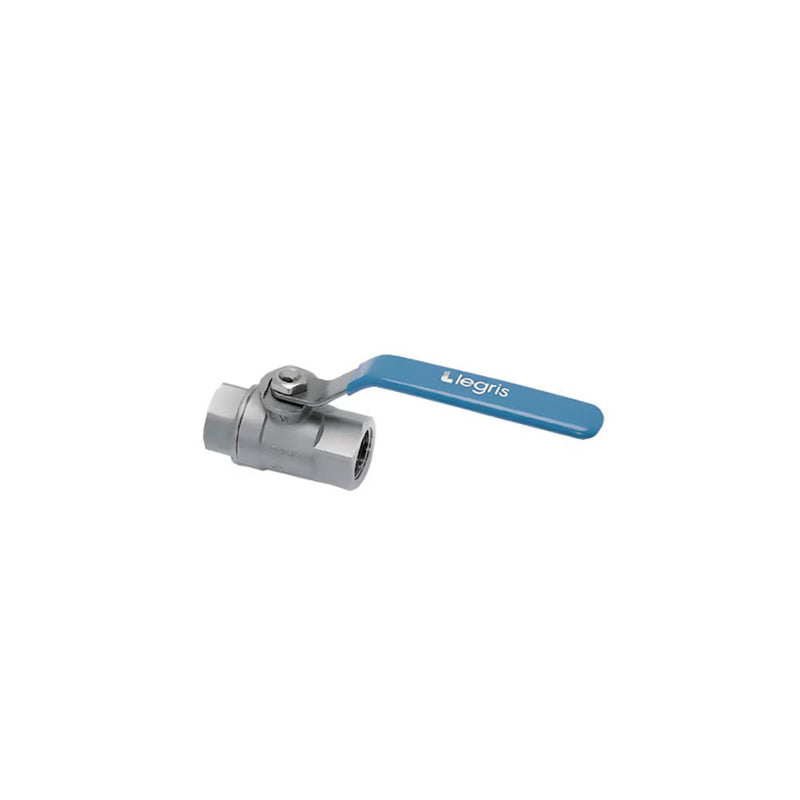

4810 20 27 by Parker | Legris In-Line Ball Valve | 3/4" Female BSPP Thread | Straight | 316L Stainless Steel

4810 20 27 by Parker | Legris In-Line Ball Valve | 3/4" Female BSPP Thread | Straight | 316L Stainless Steel

Save $1.93 Save $1.93
$106.84
$106.84 - $106.84
$106.84
$104.91
$104.91 - $104.91
$104.91

by Parker Hannifin
Stainless Steel Series:4810 2/2 In-Line Ball Valve, Female BSPP Thread
Specifications for Variant SKU: 4810 20 27 Parker
Series: 4810 Series
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): PTFE
Special Properties: Environmental Resistance, Pressure Resistance, Temperature Resistance
Technical Characteristics:
  • Compatible Fluids: All fluids
  • Working Pressure: 0 to 65 bar
  • Working Temperature: -20°C to +150°C
Advantages:
  • Chemical compatibility
  • High temperature operation: up to +150°C
  • 3 straight versions:
      • - Compact type cannot be disassembled
      - 3-piece can be disassembled
      - Light series for more compactness
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Body: 316L Stainless Steel (4832-4812-4810) or 303 Stainless Steel (0465)
  • Stem seal: PTFE
  • Seat seals: PTFE
  • Lever: Nickel-plated brass (0465) or 430 stainless steel (4832-4812-4810)
  • Stem: 316L Stainless Steel (4832-4812-4810) or 303 Stainless Steel (0465)
  • Wear-compensation seal: 2 PTFE seals (0465)
    1 FKM seal (4832-4812-4810)
  • Locking nut and Locking screw: Zinc plated steel
  • Ball: 316L stainless steel (4832-4812-4810) or 303 stainless steel (0465)
Part Number Diameter Nominal (DN) C E G H L M Kg
4810 08 13 8 mm 1/4" 10 mm 30 mm 44.5 mm 53.5 mm 110.5 mm .206 Kg
4810 10 17 10 mm 3/8" 10 mm 30 mm 44.5 mm 53.5 mm 110.5 mm .190 Kg
4810 15 21 15 mm 1/2" 13 mm 32.5 mm 47 mm 60 mm 110.5 mm .245 Kg
4810 20 27 20 mm 3/4" 14 mm 40 mm 54.5 mm 70 mm 131.5 mm .418 Kg
4810 25 34 25 mm 1" 17 mm 49 mm 58.5 mm 79 mm 131.5 mm .648 Kg

Threads conformed to ISO 228/1-G
