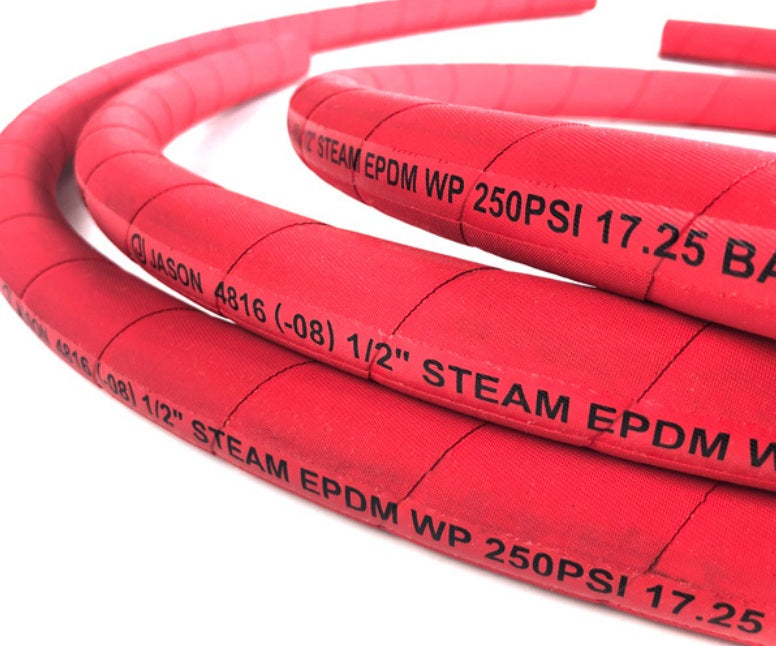

4816-0100-150 by Jason Industrial | 4816 Series | Steam Hose | EPDM | 1" ID | 1.52" OD | 250 PSI | Red | 150ft

4816-0100-150 by Jason Industrial | 4816 Series | Steam Hose | EPDM | 1" ID | 1.52" OD | 250 PSI | Red | 150ft

Save $556.45 Save $556.45
$1,442.00
$1,442.00 - $1,442.00
$1,442.00
$885.55
$885.55 - $885.55
$885.55

Jason Industrial
4816 Series | Steam Hose | Red

For the conveyance of steam in chemical/petroleum, food, lumber, pulp and processing industries.

Package Quantity: 150 FT

Specifications for Variant SKU: 4816-0100-150 Jason | 150 |
Series: 4816 Series
Hose Color(s): Red
Internal Diameter: 1in
Outer Diameter: 1.52in
Tubing Construction: EPDM
Cover Construction: EPDM
Special Properties: Pin Pricked Hose Cover
Steam Hose

Jason Industrial | 4816 Series
Steam Hose

1

What is this product used for?
  • For the conveyance of steam in chemical/petroleum, food, lumber, pulp and processing industries.
2

What are the key specifications?
Tube

EPDM

Cover

EPDM, Pin-pricked with Fabric Impression

Reinforcement

Two Braids of Steel Wire.

Temperature Range

-40°F (-40°C) to +403°F (+206°C)

Colors

Red

Branding

Jason logo 4816 Hose ID STEAM EPDM WP 250 PSI 17.25 BAR DRAIN AFTER USE, clear mylar longitudinal stripe w/black lettering.

Specifications

N/A

Design Factor

10:1

3

What are the main product features?
  • High working pressure.
  • High temperature rating.
  • Cover is pin-pricked to allow venting to eliminate blistering and cover separation.
  • Abrasion, heat, steam ozone and weather resistant cover.
  • Uses Jason 12 Series Hose Couplings.
  • WARNING! Do not use Universal Couplings or Cam and Groove Couplings with Steam Hose.
4

Which sizes or configurations are available?
Part Number
150ft		 ID OD Reinfor-
cement
Braids		 Max. Working
Pressure @ 68° F		 Vacuum
@ 68°F		 Weight
(lbs/ft)		 Minimum
Bend Radius
in mm in mm PSI BAR in of Hg in mm
4816-0050-150 1/2" 12.70mm 0.98" 25.00mm 2 250 PSI 17.25 BAR — 0.40lbs 7.10" 180.00mm
4816-0075-150 3/4" 19.05mm 1.26" 32.00mm 2 250 PSI 17.25 BAR — 0.51lbs 9.45" 240.00mm
4816-0100-150 1" 25.40mm 1.52" 38.50mm 2 250 PSI 17.25 BAR — 0.67lbs 11.80" 300.00mm
4816-0150-150 1-1/2" 38.10mm 2.05" 52.00mm 2 250 PSI 17.25 BAR — 1.11lbs 19.70" 500.00mm
4816-0200-150 2" 50.80mm 2.64" 67.00mm 2 250 PSI 17.25 BAR — 1.80lbs 25.60" 650.00mm
i
No by the foot sales. This is a Packaged Length product.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
