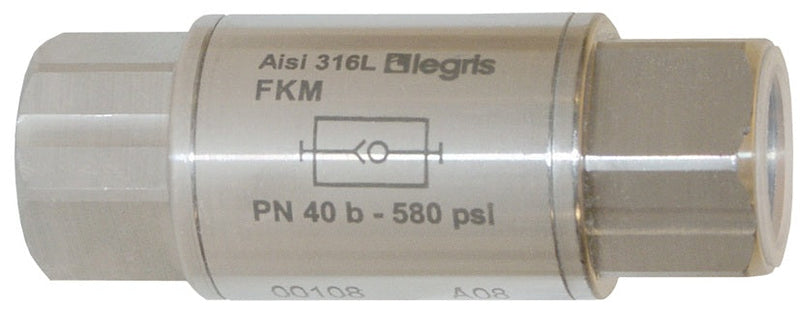

48951111 by Dixon Valve | Legris Uni-Directional Check Valve | 1/8" Female NPT | 316L Stainless Steel

48951111 by Dixon Valve | Legris Uni-Directional Check Valve | 1/8" Female NPT | 316L Stainless Steel

Save $15.46 Save $15.46
$165.50
$165.50 - $165.50
$165.50
$150.04
$150.04 - $150.04
$150.04

Dixon Valve & Coupling
Legris In-Line Check Valve

Blocks the fluid passage when the pressure differential is lower than 3.6 PSI.
Specifications for Variant SKU: 48951111 Dixon
Brand: Legris
Shape (Orientation): Straight
Material(s): 316L Stainless Steel, 302 Stainless Steel
Seal Material(s): Viton/FKM
Materials:
  • Body: 316L stainless steel
  • Shut-off valve: 316L stainless steel
  • Return spring: 302 stainless steel
  • Seals: FKM
Specifications:
  • Pressure range: 7 PSI to 580 PSI
  • Temperature range: -4°F to 356°F (-20° to 180°C)
Part Number Tube O.D. Female NPT Threads
48951111 1/8"
48951414 1/4"
48951818 3/8"
48952222 1/2"
