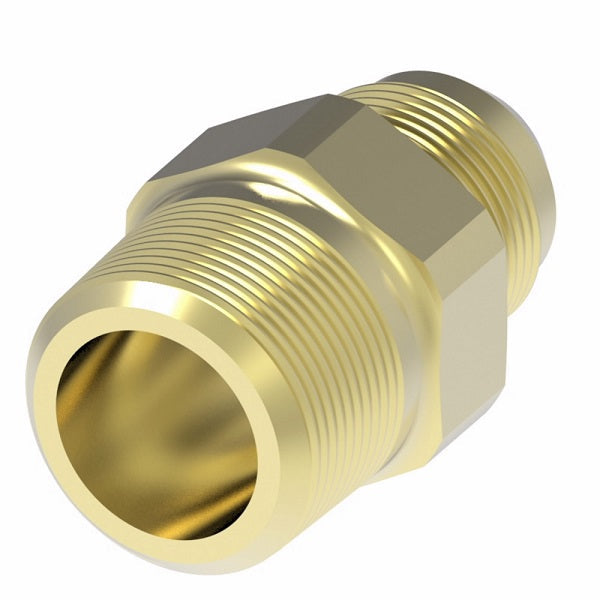

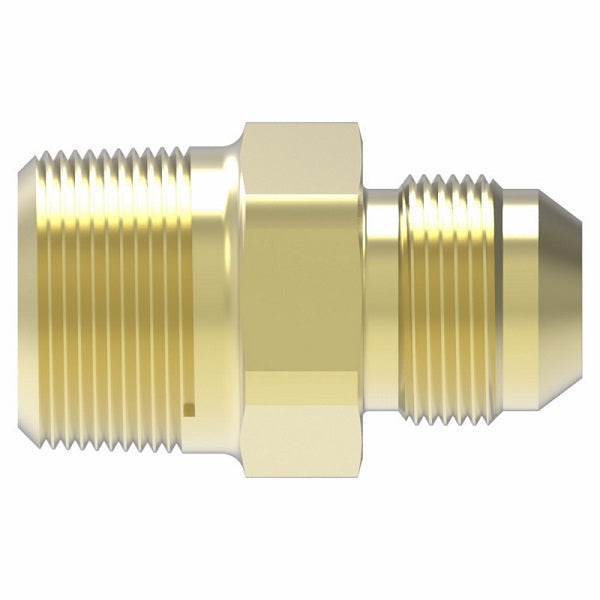

48X6X2 by Danfoss | Male Pipe/SAE 45° Flare Connector | 3/8" Male SAE 45° Flare x 1/8" Male NPTF | Brass
48X6X2 by Danfoss | Male Pipe/SAE 45° Flare Connector | 3/8" Male SAE 45° Flare x 1/8" Male NPTF | Brass
48X6X2 by Danfoss | Male Pipe/SAE 45° Flare Connector | 3/8" Male SAE 45° Flare x 1/8" Male NPTF | Brass
48X6X2 by Danfoss | Male Pipe/SAE 45° Flare Connector | 3/8" Male SAE 45° Flare x 1/8" Male NPTF | Brass

48X6X2 by Danfoss | Male Pipe/SAE 45° Flare Connector | 3/8" Male SAE 45° Flare x 1/8" Male NPTF | Brass

$15.33 - $15.33
$15.33
$15.33 - $15.33
$15.33

Aeroquip® by Danfoss
Male Pipe/SAE 45° Flare Connector
Male SAE 45° Flare x Male NPTF
Straight
Specifications for Variant SKU: 48X6X2 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male SAE 45 Flare, 1/8in Male NPTF
Material(s): Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • LP and natural gas, flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.
Advantages:
  • Low cost and reusability.
  • Long or short nut.
  • Good vibration resistance - use long nut when greater vibration resistance is required.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 010102
  • Listed by Underwriter's Laboratories (available on special order) for flammable liquids, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-18 3/4-16 7/8-14 1-1/16-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Tube O.D. Male NPTF Hex
C		 D L1 D1
48X2 - 1/8" 1/8" 7/16" 0.78" 0.90" 0.219"
48X3 - 3/16" 1/8" 7/16" 0.125" 1.00" 0.219"
48X4 48X4Z 1/4" 1/8" 7/16" 0.188" 1.06" 0.219"
48X4X4 - 1/4" 1/4" 9/16" 0.188" 1.26" 0.312"
48X5 - 5/16" 1/8" 1/2" 0.219" 1.16" 0.219"
48X5X4 - 5/16" 1/4" 9/16" 0.219" 1.34" 0.281"
48X6X2 - 3/8" 1/8" 5/8" 0.281" 1.25" 0.406"
48X6 48X6Z 3/8" 1/4" 5/8" 0.281" 1.44" 0.562"
48X6X6 48X6X6Z 3/8" 3/8" 11/16" 0.281" 1.44" 0.312"
48X6X8 48X6X8Z 3/8" 1/2" 7/8" 0.281" 1.69" 0.219"
48X8X4 48X8X4Z 1/2" 1/4" 3/4" 0.406" 1.62" 0.281"
48X8 48X8Z 1/2" 3/8" 3/4" 0.406" 1.62" 0.406"
48X8X8 48X8X8Z 1/2" 1/2" 7/8" 0.406" 1.81" 0.562"
48X10X6 - 5/8" 3/8" 7/8" 0.500" 1.81" 0.406"
48X10 48X10Z 5/8" 1/2" 7/8" 0.500" 2.00" 0.500"
48X12 - 3/4" 1/2" 1-1/16" 0.562" 2.18" 0.562"
48X12X12 - 3/4" 3/4" 1-1/16" 0.625" 2.18" 0.751"
