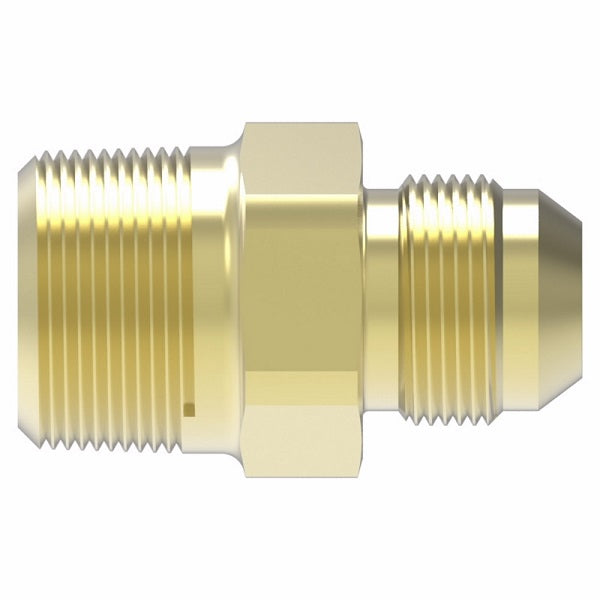

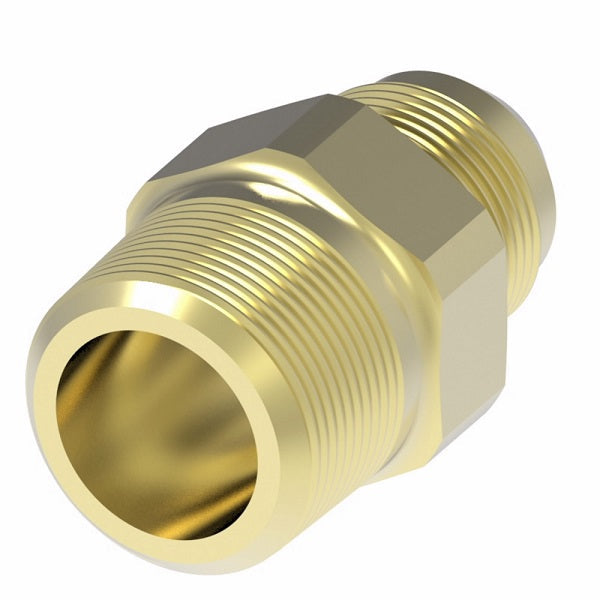

48X8X4Z by Danfoss | Male Pipe/SAE 45° Flare Connector (with Sealant) | 1/2" Male SAE 45° Flare x 1/4" Male NPTF | Brass

48X8X4Z by Danfoss | Male Pipe/SAE 45° Flare Connector (with Sealant) | 1/2" Male SAE 45° Flare x 1/4" Male NPTF | Brass

$8.92 - $8.92
$8.92
$8.92 - $8.92
$8.92

Aeroquip® by Danfoss
Male Pipe/SAE 45° Flare Connector
Male SAE 45° Flare x Male NPTF
Straight
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 48X8X4Z Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male SAE 45 Flare, 1/4in Male NPTF
Material(s): Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • LP and natural gas, flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.
Advantages:
  • Low cost and reusability.
  • Long or short nut.
  • Good vibration resistance - use long nut when greater vibration resistance is required.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 010102
  • Listed by Underwriter's Laboratories (available on special order) for flammable liquids, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-18 3/4-16 7/8-14 1-1/16-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Tube O.D. Male NPTF Hex
C		 D L1 D1
48X2 - 1/8" 1/8" 7/16" 0.78" 0.90" 0.219"
48X3 - 3/16" 1/8" 7/16" 0.125" 1.00" 0.219"
48X4 48X4Z 1/4" 1/8" 7/16" 0.188" 1.06" 0.219"
48X4X4 - 1/4" 1/4" 9/16" 0.188" 1.26" 0.312"
48X5 - 5/16" 1/8" 1/2" 0.219" 1.16" 0.219"
48X5X4 - 5/16" 1/4" 9/16" 0.219" 1.34" 0.281"
48X6X2 - 3/8" 1/8" 5/8" 0.281" 1.25" 0.406"
48X6 48X6Z 3/8" 1/4" 5/8" 0.281" 1.44" 0.562"
48X6X6 48X6X6Z 3/8" 3/8" 11/16" 0.281" 1.44" 0.312"
48X6X8 48X6X8Z 3/8" 1/2" 7/8" 0.281" 1.69" 0.219"
48X8X4 48X8X4Z 1/2" 1/4" 3/4" 0.406" 1.62" 0.281"
48X8 48X8Z 1/2" 3/8" 3/4" 0.406" 1.62" 0.406"
48X8X8 48X8X8Z 1/2" 1/2" 7/8" 0.406" 1.81" 0.562"
48X10X6 - 5/8" 3/8" 7/8" 0.500" 1.81" 0.406"
48X10 48X10Z 5/8" 1/2" 7/8" 0.500" 2.00" 0.500"
48X12 - 3/4" 1/2" 1-1/16" 0.562" 2.18" 0.562"
48X12X12 - 3/4" 3/4" 1-1/16" 0.625" 2.18" 0.751"
