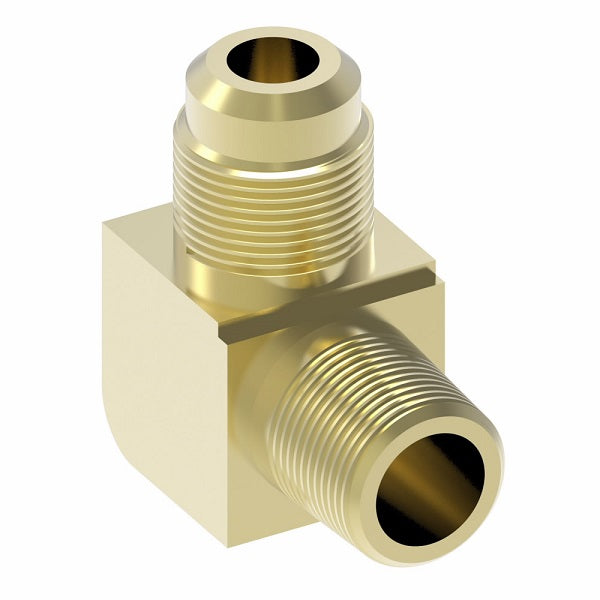

49X12 by Danfoss | Male Pipe/ SAE 45° Flare 90° Elbow Adapter| 1/2" Male NPTF x 3/4" Male SAE 45° Flare | Brass
49X12 by Danfoss | Male Pipe/ SAE 45° Flare 90° Elbow Adapter | 1/2" Male NPTF x 3/4" Male SAE 45° Flare | Brass
49X12 by Danfoss | Male Pipe/ SAE 45° Flare 90° Elbow Adapter | 1/2" Male NPTF x 3/4" Male SAE 45° Flare | Brass
49X12 by Danfoss | Male Pipe/ SAE 45° Flare 90° Elbow Adapter| 1/2" Male NPTF x 3/4" Male SAE 45° Flare | Brass

49X12 by Danfoss | Male Pipe/ SAE 45° Flare 90° Elbow Adapter | 1/2" Male NPTF x 3/4" Male SAE 45° Flare | Brass

$37.18 - $37.18
$37.18
$37.18 - $37.18
$37.18

Aeroquip® by Danfoss
Male Pipe/ SAE 45° Flare Adapter
Male NPTF x Male SAE 45° Flare
90° Elbow
Specifications for Variant SKU: 49X12 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Male NPTF, 3/4in Male SAE 45 Flare
Material(s): Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • LP and natural gas, flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.
Advantages:
  • Low cost and reusability.
  • Long or short nut.
  • Good vibration resistance - use long nut when greater vibration resistance is required.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 010202
  • Listed by Underwriter's Laboratories (available on special order) for flammable liquids, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-18 3/4-16 7/8-14 1-1/16-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Tube OD Male NPTF D D1 M N
49X2 - 1/8" 1/8" 0.078" 0.219" 0.62" 0.69"
49X3 - 3/16" 1/8" 0.125" 0.219" 0.75" 0.75"
49X4 49X4Z 1/4" 1/8" 0.188" 0.219" 0.81" 0.76"
49X4X4 49X4X4Z 1/4" 1/4" 0.188" 0.312" 0.88" 0.99"
49X4X6 - 1/4" 3/8" 0.188" 0.406" 0.94" 1.03"
49X5 - 5/16" 1/8" 0.219" 0.219" 0.91" 0.78"
49X5X4 - 5/16" 1/4" 0.219" 0.312" 0.95" 0.92"
49X6X2 49X6X2Z 3/8" 1/8" 0.283" 0.219" 1.03" 0.91"
49X6 49X6Z 3/8" 1/4" 0.281" 0.312" 0.97" 1.06"
49X6X6 49X6X6Z 3/8" 3/8" 0.281" 0.406" 1.06" 1.09"
49X6X8 - 3/8" 1/2" 0.281" 0.438" 1.16" 1.28"
49X8X4 - 1/2" 1/4" 0.406" 0.312" 1.23" 1.19"
49x8 49X8Z 1/2" 3/8" 0.406" 0.406" 1.23" 1.12"
49X8X8 49X8X8Z 1/2" 1/2" 0.406" 0.406" 1.25" 1.32"
49X10X6 - 5/8" 3/8" 0.502" 0.406" 1.42" 1.23"
49X10 49X10Z 5/8" 1/2" 0.502" 0.562" 1.42" 1.37"
49X12 - 3/4" 1/2" 0.626" 0.562" 1.62" 1.48"
49X12X12 - 3/4" 3/4" 0.625" 0.750" 1.59" 1.62"
