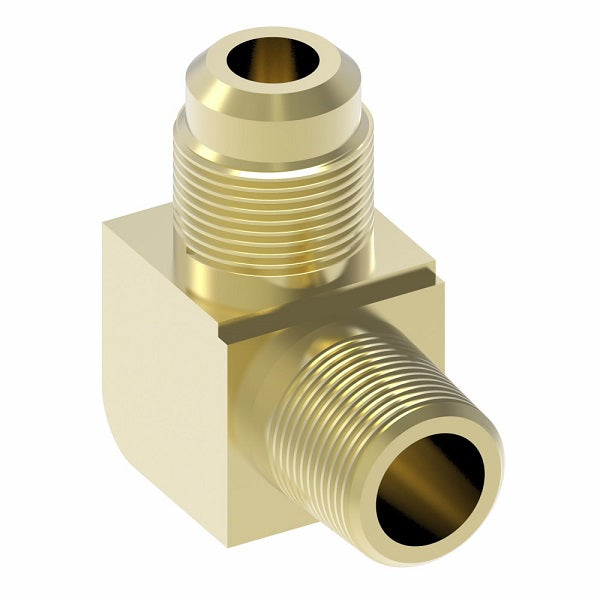

49X4X6 by Danfoss | Male Pipe/ SAE 45° Flare 90° Elbow Adapter| 3/8" Male NPTF x 1/4" Male SAE 45° Flare | Brass

49X4X6 by Danfoss | Male Pipe/ SAE 45° Flare 90° Elbow Adapter | 3/8" Male NPTF x 1/4" Male SAE 45° Flare | Brass

$19.38

Aeroquip® by Danfoss
Male Pipe/ SAE 45° Flare Adapter
Male NPTF x Male SAE 45° Flare
90° Elbow
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 49X4X6 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male NPTF, 1/4in Male SAE 45 Flare
Material(s): Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • LP and natural gas, flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.
Advantages:
  • Low cost and reusability.
  • Long or short nut.
  • Good vibration resistance - use long nut when greater vibration resistance is required.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 010202
  • Listed by Underwriter's Laboratories (available on special order) for flammable liquids, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-18 3/4-16 7/8-14 1-1/16-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Tube OD Male NPTF D D1 M N
49X2 - 1/8" 1/8" 0.078" 0.219" 0.62" 0.69"
49X3 - 3/16" 1/8" 0.125" 0.219" 0.75" 0.75"
49X4 49X4Z 1/4" 1/8" 0.188" 0.219" 0.81" 0.76"
49X4X4 49X4X4Z 1/4" 1/4" 0.188" 0.312" 0.88" 0.99"
49X4X6 - 1/4" 3/8" 0.188" 0.406" 0.94" 1.03"
49X5 - 5/16" 1/8" 0.219" 0.219" 0.91" 0.78"
49X5X4 - 5/16" 1/4" 0.219" 0.312" 0.95" 0.92"
49X6X2 49X6X2Z 3/8" 1/8" 0.283" 0.219" 1.03" 0.91"
49X6 49X6Z 3/8" 1/4" 0.281" 0.312" 0.97" 1.06"
49X6X6 49X6X6Z 3/8" 3/8" 0.281" 0.406" 1.06" 1.09"
49X6X8 - 3/8" 1/2" 0.281" 0.438" 1.16" 1.28"
49X8X4 - 1/2" 1/4" 0.406" 0.312" 1.23" 1.19"
49x8 49X8Z 1/2" 3/8" 0.406" 0.406" 1.23" 1.12"
49X8X8 49X8X8Z 1/2" 1/2" 0.406" 0.406" 1.25" 1.32"
49X10X6 - 5/8" 3/8" 0.502" 0.406" 1.42" 1.23"
49X10 49X10Z 5/8" 1/2" 0.502" 0.562" 1.42" 1.37"
49X12 - 3/4" 1/2" 0.626" 0.562" 1.62" 1.48"
49X12X12 - 3/4" 3/4" 0.625" 0.750" 1.59" 1.62"
