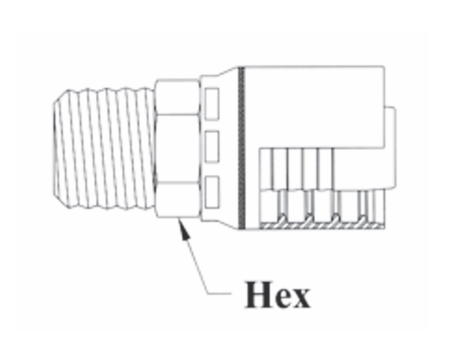

4GC01-8x12 Couplamatic Grip Crimp 4GC Series Coupling - NPTF - Male Solid - 1/2" Hose ID - 3/4-14 Thread Size

4GC01-8x12 by Couplamatic | Grip Crimp 4GC Series Coupling | 1/2" Hose ID x 3/4-14 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating

Save $1.46 Save $1.46
$13.15
$13.15 - $13.15
$13.15
$11.69
$11.69 - $11.69
$11.69

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - NPTF - Male Solid
Specifications for Variant SKU: 4GC01-8x12 Couplamatic
Series: 4GC Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPTF, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series
Description:
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•
    Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
    Parker 71
    4GC01-8x8 1/2" 1/2" 1/2-14 7/8" 10171-8-8
    4GC01-8x12 1/2" 3/4" 3/4-14 1-1/8" 10171-12-8
    4GC01-12x12 3/4" 3/4" 3/4-14 1-1/8" 10171-12-12
    4GC01-12x16 3/4" 1" 1-11-1/2 1-3/8" 10171-16-12
    4GC01-16x12 1" 3/4" 3/4-14 1-3/8" 10171-12-16
    4GC01-16x16 1" 1" 1-11-1/2 1-3/8" 10171-16-16
    4GC01-20x20 1-1/4" 1-1/4" 1-1/4-11-1/2 1-11/16" 10171-20-20
    4GC01-24x24 1-1/2" 1-1/2" 1-1/2-11-1/2 2" 10171-24-24
    4GC01-32x32 2" 2" 2-11-1/2 2-1/2" 10171-32-32

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
