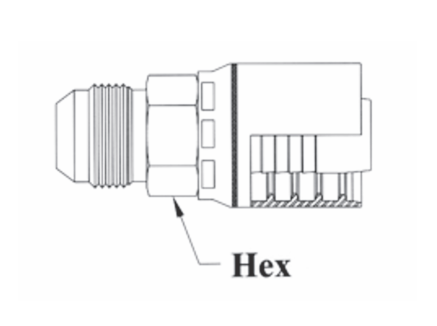

4GC08-12x16 Couplamatic Grip Crimp 4GC Series Coupling - JIC 37° - Male Solid - 3/4" Hose ID - 1-5/16x12 Thread Size

4GC08-12x16 by Couplamatic | Grip Crimp 4GC Series Coupling | 3/4" Hose ID x 1-5/16x12 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating

Save $14.23 Save $14.23
$35.58
$35.58 - $35.58
$35.58
$21.35
$21.35 - $21.35
$21.35

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - JIC 37° - Male Solid
Specifications for Variant SKU: 4GC08-12x16 Couplamatic
Series: 4GC Series
Shape (Orientation): Straight
Ends Configuration: 1in Male JIC, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series
Description:
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•
    Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
    Parker 71
    4GC08-8x8 1/2" 1/2" 3/4x16 7/8" 10371-8-8
    4GC08-8x10 1/2" 5/8" 7/8x14 7/8" 10371-10-8
    4GC08-12x12 3/4" 3/4" 1-1/16x12 1-1/8" 10371-12-12
    4GC08-12x14 3/4" 7/8" 1-3/16x12 1-3/8" 10371-14-12
    4GC08-12x16 3/4" 1" 1-5/16x12 1-3/8" 10371-16-12
    4GC08-16x16 1" 1" 1-5/16x12 1-3/8" 10371-16-16
    4GC08-20x20 1-1/4" 1-1/4" 1-5/8x12 1-11/16" 10371-20-20

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
