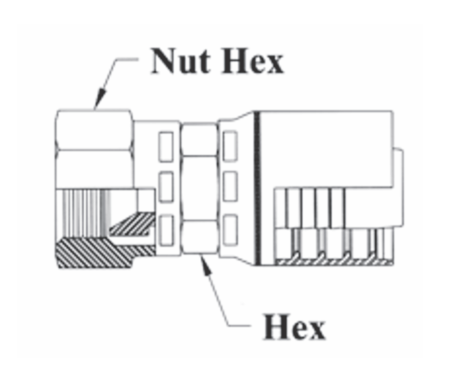

4GC09-8x8 Couplamatic Grip Crimp 4GC Series Coupling - JIC 37° - Female Swivel - 1/2" Hose ID - 3/4x16 Thread Size

4GC09-8x8 by Couplamatic | Grip Crimp 4GC Series Coupling | 1/2" Hose ID x 3/4x16 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Save $5.02 Save $5.02
$12.55
$12.55 - $12.55
$12.55
$7.53
$7.53 - $7.53
$7.53

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - JIC 37° - Female Swivel
Specifications for Variant SKU: 4GC09-8x8 Couplamatic
Series: 4GC Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series
4GC Series — 100R12 No-Skive

4GC09 Grip Crimp 4GC Series Coupling — JIC 37°, Female Swivel, Straight

4GC09 is the JIC 37°, Female Swivel, Straight configuration of the Grip Crimp 4GC Series, terminating SAE 100R12 four spiral hose.

1

What are the main product features?
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • No skive required — terminates spiral hose without stripping the cover.
  • Four spiral construction — built for SAE 100R12 pressures and impulse cycles.
2

Which sizes are available?
Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Parker 71
4GC09-8x8 1/2" 1/2" 3/4x16 7/8" 7/8" 10671-8-8
4GC09-8x10 1/2" 5/8" 7/8x14 7/8" 1" 10671-10-8
4GC09-8x12 1/2" 3/4" 1-1/16x12 1-1/8" 1-1/4" 10671-12-8
4GC09-12x12 3/4" 3/4" 1-1/16x12 1-1/8" 1-1/4" 10671-12-12
4GC09-12x14 3/4" 7/8" 1-3/16x12 1-1/4" 1-1/2" 10671-14-12
4GC09-12x16 3/4" 1" 1-5/16x12 1-3/8" 1-1/2" 10671-16-12
4GC09-16x12 1" 3/4" 1-1/16x12 1-3/8" 1-1/4" 10671-12-16
4GC09-16x16 1" 1" 1-5/16x12 1-3/8" 1-1/2" 10671-16-16
4GC09-16x20 1" 1-1/4" 1-5/8x12 1-11/16" 2" 10671-20-16
4GC09-20x20 1-1/4" 1-1/4" 1-5/8x12 1-11/16" 2" 10671-20-20
4GC09-20x24 1-1/4" 1-1/2" 1-7/8x12 1-7/8" 2-1/4" 10671-24-20
4GC09-24x24 1-1/2" 1-1/2" 1-7/8x12 2" 2-1/4" 10671-24-24
4GC09-32x32 2" 2" 2-1/2x12 2-1/2" 2-7/8" 10671-32-32
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
