4GC10-8x8 Couplamatic Grip Crimp 4GC Series Coupling - BSPP - British Standard Parallel 60° Cone - Female Swivel - 1/2" Hose ID - G-1/2-14 Thread Size - 1/2" BSPP size

4GC10-8x8 by Couplamatic | Grip Crimp 4GC Series Coupling | 1/2" Hose ID x G-1/2-14 Thread Size Female 60° Cone Swivel | 1/2" BSPP Size | Straight | Trivalent Zinc Plating

Save $6.91 Save $6.91
$17.28
$17.28 - $17.28
$17.28
$10.37
$10.37 - $10.37
$10.37

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - BSPP - British Standard Parallel 60° Cone - Female Swivel
Specifications for Variant SKU: 4GC10-8x8 Couplamatic
Series: 4GC Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female BSPP, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series
Description:
  • G. as part of thread size is ISO designation for parallel thread.
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

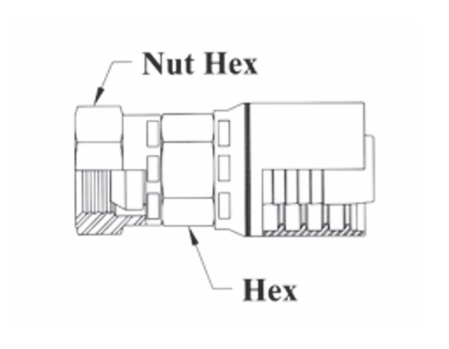

    Part Number Hose ID BSPP Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
    Parker 71
    4GC10-8x8 1/2" 1/2" G-1/2-14 7/8" 1" 1GU71-8-8
    4GC10-12x12 3/4" 3/4" G-3/4-14 1-1/8" 1-1/4" 1GU71-12-12
    4GC10-16x16 1" 1" G-1-11 1-3/8" 1-1/2" 1GU71-16-16

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
