4GC32-20x20 Couplamatic Grip Crimp 4GC Series Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel - 1-1/4" Hose ID - 1-11/16x12 Thread Size

4GC32-20x20 by Couplamatic | Grip Crimp 4GC Series Coupling | 1-1/4" Hose ID x 1-11/16x12 Thread Size O-Ring Face Seal | ORF Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $8.63 Save $8.63
$77.65
$77.65 - $77.65
$77.65
$69.02
$69.02 - $69.02
$69.02

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - O-Ring Face Seal (ORF) - 90° Female Swivel
Specifications for Variant SKU: 4GC32-20x20 Couplamatic
Series: 4GC Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Female O-Ring Face Seal, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series
Description:
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

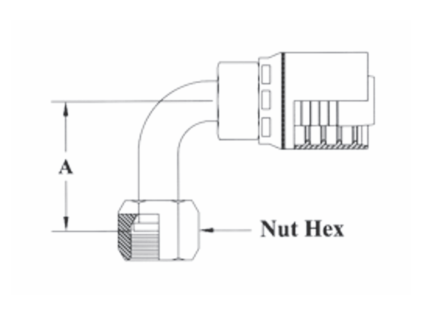

    Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex Cross Reference Part Numbers
    Parker 71
    4GC31-8x8 1/2" 1/2" 13/16x16 1.15" 15/16" 1J971-8-8
    4GC32-8x10 1/2" 5/8" 1x14 1.27" 1-1/8" 1J971-10-8
    4GC32-12x10 3/4" 5/8" 1x14 1.27" 1-1/8" 1J971-10-12
    4GC32-12x12 3/4" 3/4" 1-3/16x12 1.88" 1-3/8" 1J971-12-12
    4GC32-12x16 3/4" 1" 1-7/16x12 2.20" 1-5/8" 1J971-16-12
    4GC32-16x16 1" 1" 1-7/16x12 2.20" 1-5/8" 1J971-16-16
    4GC32-20x20 1-1/4" 1-1/4" 1-11/16x12 2.51" 1-7/8" 1J971-20-20

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

    Couplamatic Systems Inc

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
