4GC38-8x16 Couplamatic Grip Crimp 4GC Series Coupling - DIN Heavy 24° Seat - Female Swivel - 1/2" Hose ID - M24x1.5 Thread Size

4GC38-8x16 by Couplamatic | Grip Crimp 4GC Series Coupling | 1/2" Hose ID x M24x1.5 Thread Size DIN Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating

Save $14.75 Save $14.75
$36.87
$36.87 - $36.87
$36.87
$22.12
$22.12 - $22.12
$22.12

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - DIN Heavy 24° Seat - Female Swivel
Specifications for Variant SKU: 4GC38-8x16 Couplamatic
Series: 4GC Series
Shape (Orientation): Straight
Ends Configuration: S16 Female DIN, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series
Description:
  • Includes O-Ring
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

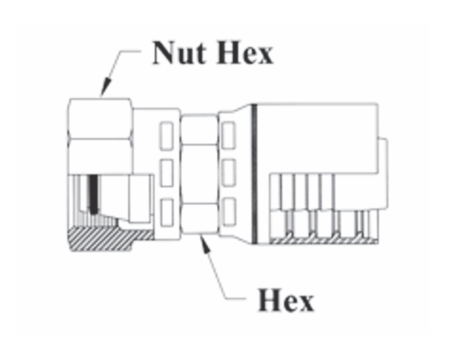

    Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
    Parker 71
    4GC38-8x16 1/2" 16mm M24x1.5 7/8" 1-1/8" 1C971-16-8
    4GC38-12x25 3/4" 25mm M36x2.0 1-3/8" 1-7/8" 1C971-25-12
    4GC38-16x30 1" 30mm M42x2.0 1-11/16" 2" 1C971-30-16
