4GC48-16x16 Couplamatic Grip Crimp 4GC Series Coupling - Code 61 Split Flange - 22-1/2° Bend - 1" Hose ID - 1" Flange Size

4GC48-16x16 by Couplamatic | Grip Crimp 4GC Series Coupling | 1" Hose ID x 1" Split Flange Size | Code 61 | 22-1/2° Elbow | Trivalent Zinc Plating

Save $4.14

$37.25

$37.25 - $37.25

$37.25

$33.11

$33.11 - $33.11

$33.11

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - Code 61 Split Flange - 22-1/2° Bend

Quantity

Specifications for Variant SKU: 4GC48-16x16 Couplamatic
Series:	4GC Series
Shape (Orientation):	22.5 Degree
Ends Configuration:	1in Code 61 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	SP580 Series \| CS-FLEX 4 Series \| DHEXR12 Series \| CS-FLEX 5 Series

Description:
The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

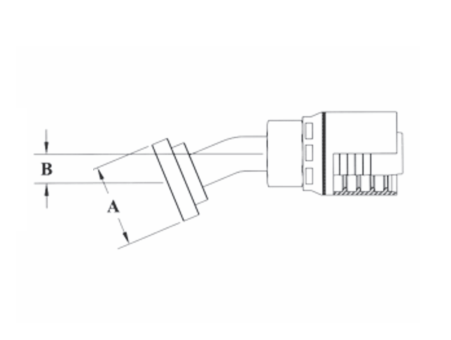

Part Number	Hose ID	Flange Size	A-Dia Inches	B-Drop Inches	Cross Reference Part Numbers
Part Number	Hose ID	Flange Size	A-Dia Inches	B-Drop Inches	Parker 71
4GC48-12x12	3/4"	3/4"	1.50"	0.44"	11671-12-12
4GC48-12x16	3/4"	1"	1.75"	0.44"	11671-16-12
4GC48-16x16	1"	1"	1.75"	0.45"	11671-16-16
4GC48-16x20	1"	1-1/4"	2.00"	0.45"	11671-20-16
4GC48-20x20	1-1/4"	1-1/4"	2.00"	0.50"	11671-20-20

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
