4GC60-12x12 Couplamatic Grip Crimp 4GC Series Coupling - Code 62 Split Flange - Straight - 3/4" Hose ID - 3/4" Flange Size

4GC60-12x12 by Couplamatic | Grip Crimp 4GC Series Coupling | 3/4" Hose ID x 3/4" Split Flange Size | Code 62 | Straight | Trivalent Zinc Plating

Save $19.52

$48.80

$48.80 - $48.80

$48.80

$29.28

$29.28 - $29.28

$29.28

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - Code 62 Split Flange - Straight

Specifications for Variant SKU: 4GC60-12x12 Couplamatic
Series:	4GC Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Code 62 Flange, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	SP580 Series \| CS-FLEX 4 Series \| DHEXR12 Series \| CS-FLEX 5 Series

Description:
The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

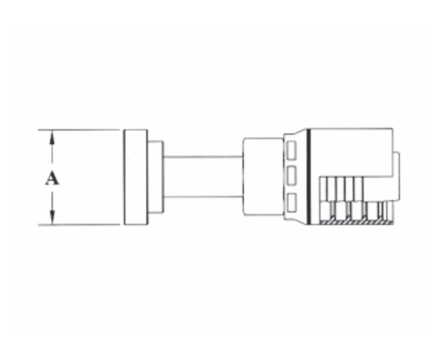

Part Number	Hose ID	Flange Size	A-Dia Inches	Cross Reference Part Numbers
Part Number	Hose ID	Flange Size	A-Dia Inches	Parker 71
4GC60-12x12	3/4"	3/4"	1.62"	16A71-12-12
4GC60-12x16	3/4"	1"	1.88"	16A71-16-12
4GC60-16x16	1"	1"	1.88"	16A71-16-16
4GC60-16x20	1"	1-1/4"	2.12"	16A71-20-16
4GC60-20x20	1-1/4"	1-1/4"	2.12"	16A71-20-20

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
