4GC62-16x20 Couplamatic Grip Crimp 4GC Series Coupling - Code 62 Split Flange - 90° Bend - 1" Hose ID - 1-1/4" Flange Size

4GC62-16x20 by Couplamatic | Grip Crimp 4GC Series Coupling | 1" Hose ID x 1-1/4" Split Flange Size | Code 62 | 90° Elbow | Trivalent Zinc Plating

Save $5.97

$53.74

$53.74 - $53.74

$53.74

$47.77

$47.77 - $47.77

$47.77

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - Code 62 Split Flange - 90° Bend

Quantity

Specifications for Variant SKU: 4GC62-16x20 Couplamatic
Series:	4GC Series
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/4in Code 62 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	SP580 Series \| CS-FLEX 4 Series \| DHEXR12 Series \| CS-FLEX 5 Series

Description:
The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

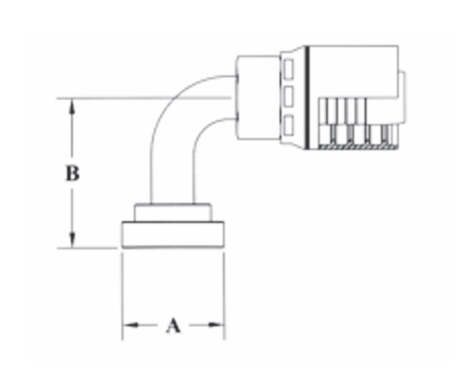

Part Number	Hose ID	Flange Size	A-Dia Inches	B-Drop Inches	Cross Reference Part Numbers
Part Number	Hose ID	Flange Size	A-Dia Inches	B-Drop Inches	Parker 71
4GC62-12x12	3/4"	3/4"	1.62"	2.41"	16N71-12-12
4GC62-12x16	3/4"	1"	1.88"	2.70"	16N71-16-12
4GC62-16x16	1"	1"	1.88"	2.75"	16N71-16-16
4GC62-16x20	1"	1-1/4"	2.12"	2.90"	16N71-20-16
4GC62-20x20	1-1/4"	1-1/4"	2.12"	3.24"	16N71-20-20

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
