4HTZF6 by Dixon Valve | Hydraulic Quick Disconnect Coupling | HTZ-Series | ISO16028 Connect Under Pressure Flush Face Coupler | 3/4" Female NPTF x 1/2" Body Size | Socket | Steel

Save $2.87

$71.92

$71.92 - $71.92

$71.92

$69.05

$69.05 - $69.05

$69.05

Dixon Valve & Coupling

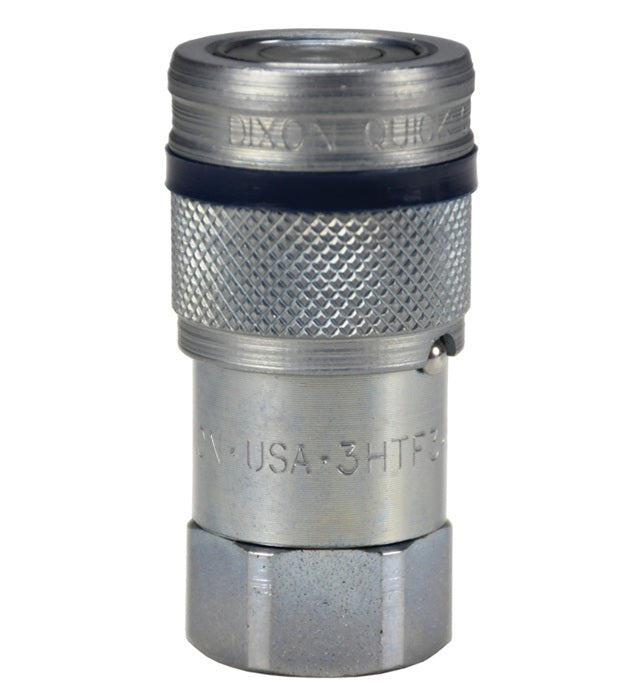

Hydraulic Coupling: HTZ-Series ISO16028 Connect Under Pressure Flush Face Coupler (Female Threads)

For use with HT or HTE series plugs.

Quantity

Specifications for Variant SKU: 4HTZF6 Dixon
Series:	HTZ-Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female ISO-16028 Flush Face QD Interchange, 3/4in Female NPTF
Material(s):	Steel

Compatibility & Interchange:	Interchangeable to ISO16028. For use with HT or HTE series plugs. Connectable with trapped pressure on HTZ half only.

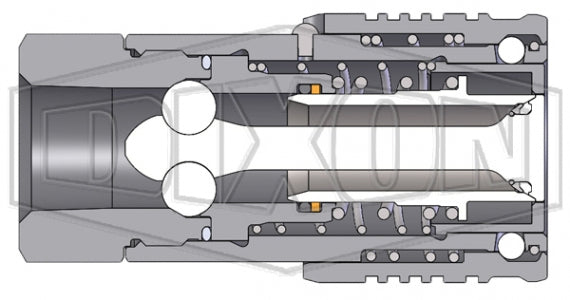

Construction:	Machined components are manufactured using solid steel or 316 stainless steel bar stock. Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS compliant zinc nickel for corrosion resistance. Steel coupler sleeves are hardened to resist deformation and maximize service life. Steel plugs are hardened to provide resistance to brinelling during impulse service.
Seal Components:	1/2"plugs have molded polyurethane valve seals, with a temperature range of -65°F to 212°F (-54°C to 100°C). Couplers have a polyurethane valve stem O-ring, with a temperature range of -65°F to 212°F (-54°C to 100°C). Ancillary coupler and plug seals are Nitrile with a temperature range of -40°F to 250°F (-40°C to 121°C). PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF
