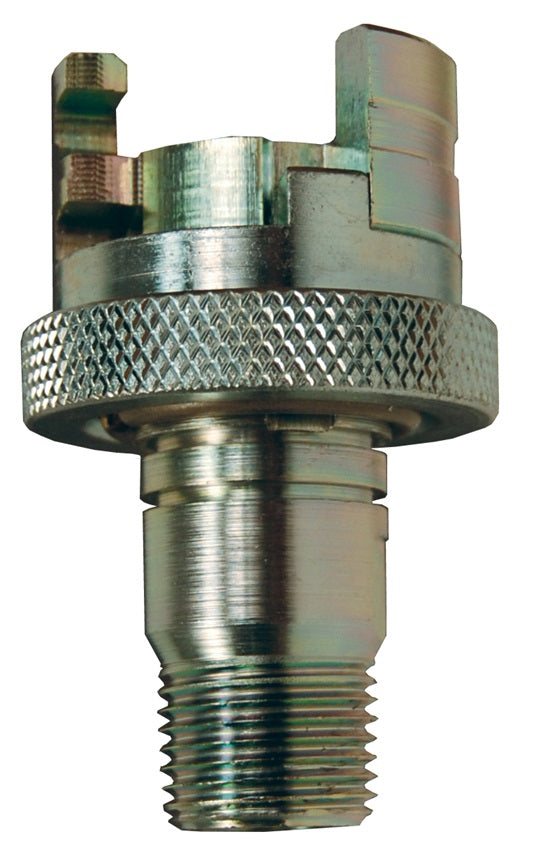

4PM3-FS by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dual-Lock P-Series | Knurled Flanged Sleeve | Socket | 3/8" Male NPTF x 1/2" Body Size | Trivalent Chrome Plated Steel

Save $2.29

$30.14

$30.14 - $30.14

$30.14

$27.85

$27.85 - $27.85

$27.85

Dixon Valve & Coupling
Pneumatic Coupling: Dual-Lock P-Series Socket (Male Threads with Knurled Flanged Sleeve)

Large, raised collar sleeve permits easier handling when wearing gloves.

Quantity

Specifications for Variant SKU: 4PM3-FS Dixon
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPTF, Thor QD Interchange
Material(s):	Trivalent Chrome-Plated Steel

Compatibility & Interchange:	Thor Finger-Lock Interchange Interchanges with National A type, Campbell Double-Lock and Thor PHC series couplings
Construction:	Machined components are manufactured using solid bar stock. Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C). Stainless steel retaining ring and spring maximize corrosion resistance and extend service life on the 1 piece sleeve. 2-Piece Sleeve has a phosphor bronze spring. Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

Dual-Lock P-Series \| Coupler (Male Threads) with Knurled Flanged Sleeve

Trivalent Chrome Plated Steel Part Number	Body Size	Threads
4PM3-FS	1/2"	3/8"-18 Male NPTF
4PM4-FS	1/2"	1/2"-14 Male NPTF
4PM6-FS	1/2"	3/4"-14 Male NPTF

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
