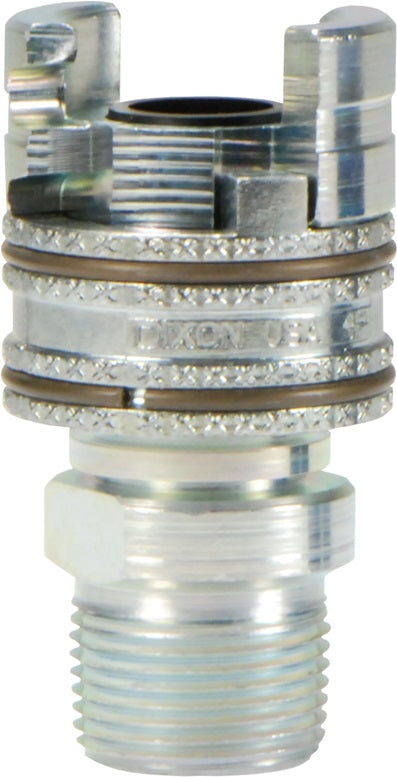

4PM8 by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dual-Lock P-Series | 1" Male NPTF x 1/2" Body Size | Socket | Nitrile Seal | Steel

Save $3.72

$49.35

$49.35 - $49.35

$49.35

$45.63

$45.63 - $45.63

$45.63

Dixon Valve & Coupling
Pneumatic Coupling: Dual-Lock P-Series Socket (Male Threads)

Quantity

Specifications for Variant SKU: 4PM8 Dixon
Series:	P-Series
Shape (Orientation):	Straight
Ends Configuration:	1in Male NPTF, Thor QD Interchange
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Thor Finger-Lock Interchange Interchanges with National A type, Campbell Double-Lock and Thor PHC series couplings
Construction:	Zinc Cast sleeve. Machined components are manufactured using solid bar stock. Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C). Stainless steel retaining ring and spring maximize corrosion resistance and extend service life on the 1 piece sleeve. 2-Piece Sleeve has a phosphor bronze spring. Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

Dual-Lock P-Series \| Coupler (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Wrench Flats	Max. Operating Pressure	Burst Pressure
4PM3	Socket/Female	1/2"	3/8" - 18 Male NPTF	Steel	2.93" (74.4mm)	1.55" (39.4mm)	7/8"	300 PSI (20 bar)	2600 PSI (180 bar)
4PM4	Socket/Female	1/2"	1/2" - 14 Male NPTF	Steel	2.94" (74.7mm)	1.55" (39.4mm)	7/8"	300 PSI (20 bar)	2600 PSI (180 bar)
4PM6	Socket/Female	1/2"	3/4" - 14 Male NPTF	Steel	2.98" (75.7mm)	1.55" (39.4mm)	1-1/16"	300 PSI (20 bar)	2600 PSI (180 bar)
4PM6-9	Socket/Female	1/2"	3/4" - 14 Male NPTF	Steel/PTFE Coating	2.98" (75.7mm)	1.55" (39.4mm)	1-1/16"	300 PSI (20 bar)	2600 PSI (180 bar)
4PM6-S	Socket/Female	1/2"	3/4" - 14 Male NPTF	303 Stainless	2.98" (75.7mm)	1.55" (39.4mm)	1-1/16"	300 PSI (20 bar)	4500 PSI (310 bar)
4PM8	Socket/Female	1/2"	1" - 11-1/2 Male NPTF	Steel	3.11" (79.0mm)	1.55" (39.4mm)	1-3/8"	300 PSI (20 bar)	2600 PSI (180 bar)

Dual-Lock P-Series \| Plug (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Wrench Flats	Max. Operating Pressure	Burst Pressure
P4M3	Plug/Male	1/2"	3/8" - 18 Male NPTF	Steel	2.00" (50.8mm)	1.55" (39.4mm)	7/8"	300 PSI (20 bar)	2600 PSI (180 bar)
P4M4	Plug/Male	1/2"	1/2" - 14 Male NPTF	Steel	2.25" (57.2mm)	1.55" (39.4mm)	15/16"	300 PSI (20 bar)	2600 PSI (180 bar)
P4M4-B	Plug/Male	1/2"	1/2" - 14 Male NPTF	Brass	2.25" (57.2mm)	1.55" (39.4mm)	15/16"	300 PSI (20 bar)	3500 PSI (240 bar)
P4M6	Plug/Male	1/2"	3/4" - 14 Male NPTF	Steel	2.55" (64.8mm)	1.55" (39.4mm)	1-1/8"	300 PSI (20 bar)	2600 PSI (180 bar)
P4M6-9	Plug/Male	1/2"	3/4" - 14 Male NPTF	Steel/PTFE Coating	2.55" (64.8mm)	1.55" (39.4mm)	1-1/8"	300 PSI (20 bar)	2600 PSI (180 bar)
P4M6-B	Plug/Male	1/2"	3/4" - 14 Male NPTF	Brass	2.55" (64.8mm)	1.55" (39.4mm)	1-1/8"	300 PSI (20 bar)	3500 PSI (240 bar)
P4M6-S	Plug/Male	1/2"	3/4" - 14 Male NPTF	303 Stainless	2.55" (64.8mm)	1.55" (39.4mm)	1-1/8"	300 PSI (20 bar)	4500 PSI (310 bar)
P4M8	Plug/Male	1/2"	1" - 11-1/2 Male NPTF	Steel	3.25" (82.6mm)	1.55" (39.4mm)	1-3/8"	300 PSI (20 bar)	2600 PSI (180 bar)
P4M8-B	Plug/Male	1/2"	1" - 11-1/2 Male NPTF	Brass	3.25" (82.6mm)	1.55" (39.4mm)	1-3/8"	300 PSI (20 bar)	3500 PSI (240 bar)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
