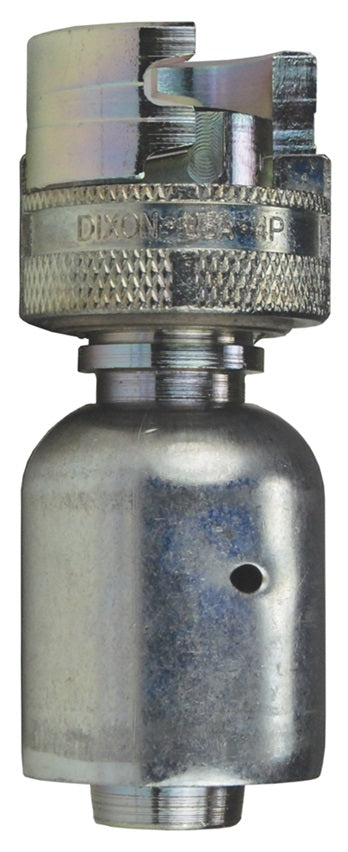

4PS4-WF by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dual-Lock P-Series | Hose Barb | 1/2" Hose ID x 1/2" Body Size | Socket with Ferrule | Nitrile Seal | Steel

Save $18.11

$45.27

$45.27 - $45.27

$45.27

$27.16

$27.16 - $27.16

$27.16

Dixon Valve & Coupling
Pneumatic Coupling: Dual-Lock P-Series Coupler with Ferrule (Hose Barb)

Specifications for Variant SKU: 4PS4-WF Dixon
Series:	P-Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, Thor QD Interchange
Material(s):	Plated Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Thor Finger-Lock Interchange Interchanges with Thor PHC-series, National Series 'A', and Campbell Double-Lock
Construction:	Machined components are manufactured using solid steel bar stock. Stainless steel retaining ring and spring maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel couplings have a zinc cast sleeve. Nitrile (Nitrile Rubber) seals standard, temperature range -40°F to 250°F (-40°C to 121°C)
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

Dual-Lock P-Series \| Coupler with Ferrule (Hose Barb)

Part Number	Coupling Type	Body Size	Hose ID	Material	Hose OD		Length	Max. OD	Working Pressure
Part Number	Coupling Type	Body Size	Hose ID	Material	From	To	Length	Max. OD	Working Pressure
4PS4-WF	Socket/Female	1/2"	1/2"	Steel	54/64"	1-2/64"	3.95" (100.30mm)	1.55" (39.40mm)	300 PSI*
4PS6-WF	Socket/Female	1/2"	3/4"	Steel	1-10/64"	1-22/64"	3.95" (100.30mm)	1.55" (39.40mm)	300 PSI*
4PS6-B-WF	Socket/Female	1/2"	3/4"	Brass	1-10/64"	1-22/64"	3.95" (100.30mm)	1.55" (39.40mm)	-
4PS6-S-WF	Socket/Female	1/2"	3/4"	303 Stainless	1-10/64"	1-22/64"	3.95" (100.30mm)	1.55" (39.40mm)	-

* at ambient temperature 70°F (21°C)
