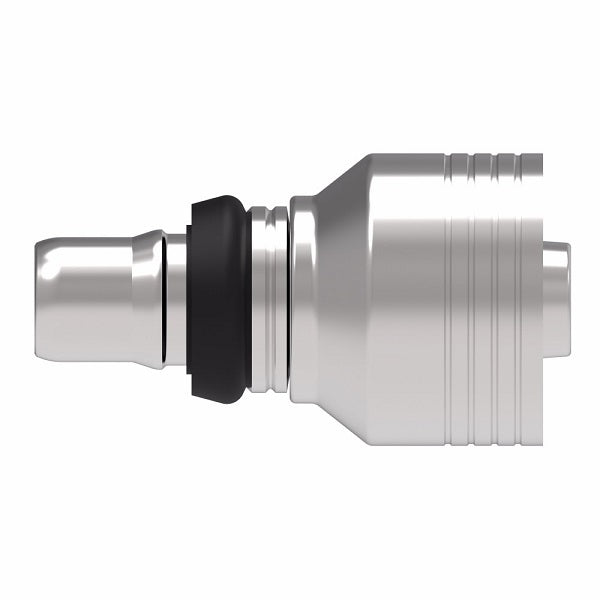

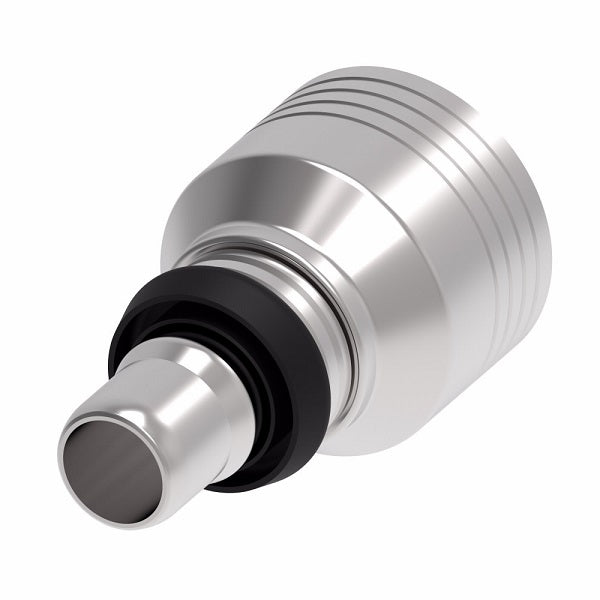

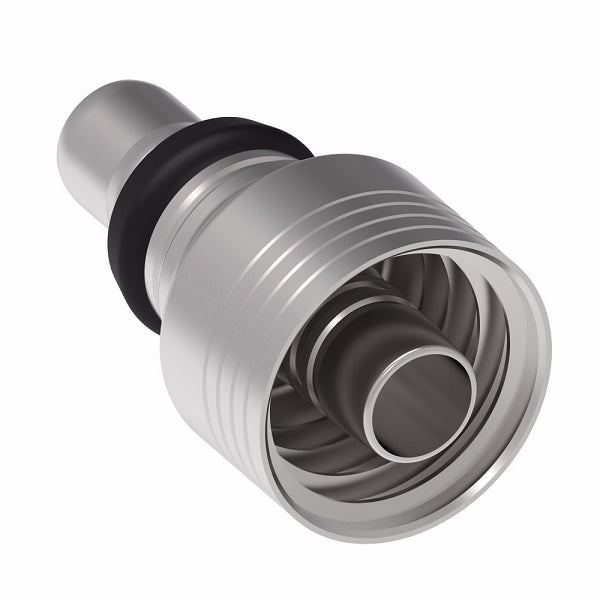

4S10MC10 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | TCC12 Crimp Fitting | -10 Male STC x -10 Hose Barb | Steel
4S10MC10 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | TCC12 Crimp Fitting | -10 Male STC x -10 Hose Barb | Steel | Pack of 10
4S10MC10 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | TCC12 Crimp Fitting | -10 Male STC x -10 Hose Barb | Steel | Pack of 10
4S10MC10 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | TCC12 Crimp Fitting | -10 Male STC x -10 Hose Barb | Steel

4S10MC10 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | TCC12 Crimp Fitting | -10 Male STC x -10 Hose Barb | Steel | Pack of 10

$430.96 - $430.96
$430.96
$430.96 - $430.96
$430.96

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - TTC12 Crimp Fitting - Male STC (Snap to Connect) Hose End (MC) - Straight

(Formerly Eaton Aeroquip)


Package Quantity: 10 Units

Specifications for Variant SKU: 4S10MC10 Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 5/8in Male STC, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH493 Series  |   FC736 Series
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Part Number Dash Size A D E Ø STC Release Tool
4S8MC8 -08 2.61" 1.44" 0.38" FF90213-08
4S10MC10 -10 2.72" 1.56" 0.50" FF90213-10
