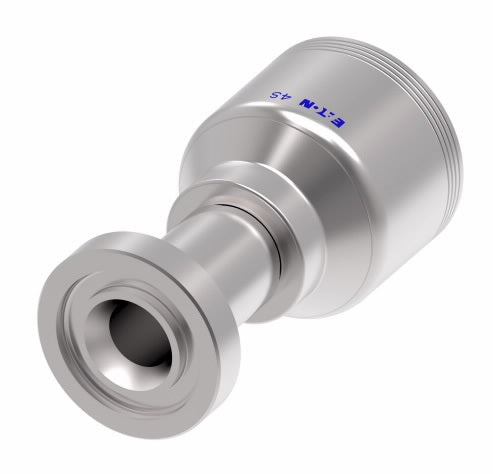

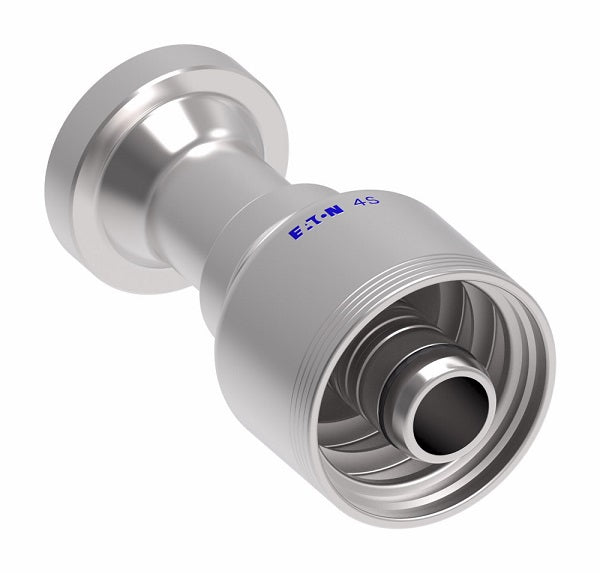

4S12FH8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Split Flange (FH) Crimp Fitting | -12 Code 62 Split Flange x -08 Hose Barb | Steel | Pack of 10
4S12FH8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Split Flange (FH) Crimp Fitting | -12 Code 62 Split Flange x -08 Hose Barb | Steel | Pack of 10
4S12FH8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Split Flange (FH) Crimp Fitting | -12 Code 62 Split Flange x -08 Hose Barb | Steel | Pack of 10

4S12FH8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Split Flange (FH) Crimp Fitting | -12 Code 62 Split Flange x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,408.00 - $1,408.00
$1,408.00
$1,408.00 - $1,408.00
$1,408.00

Aeroquip® by Danfoss
4 Wire 4S SAE Code 62 Flange Crimp Fitting (FH) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S12FH8 Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 3/4in Code 62 Flange, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash
Dash Size DN Dash Size
4S8FH8 -08 - -08 1.25" 3.13" 2.06" 0.38"
4S12FH8 -12 - -08 1.63" 3.17" 2.10" 0.38"
4S12FH10 -12 - -10 1.63" 3.13" 2.11" 0.50"
4S12FH12 -12 19 -12 1.63" 3.57" 2.15" 0.56"
4S16FH12 -16 19 -12 1.88" 3.55" 2.13" 0.56"
4S12FH16 -12 25 -16 1.63" 3.79" 2.23" 0.56"
4S16FH16 -16 25 -16 1.88" 3.89" 2.33" 0.76"
4S20FH16 -20 25 -16 2.13" 3.97" 2.40" 0.76"
4S16FH20 -16 31 -20 1.88" 4.87" 2.70" 0.99"
4S20FH20 -20 31 -20 2.13" 4.85" 2.68" 0.99"
4S24FH20 -24 31 -20 2.50" 5.08" 2.91" 0.99"
4S24FH24 -24 38 -24 2.50" 7.46" 4.39" 1.22"
4S32FH24 -32 38 -24 3.13" 8.05" 4.89" 1.22"
4S32FH32 -32 51 -32 3.13" 7.98" 4.91" 1.66"
