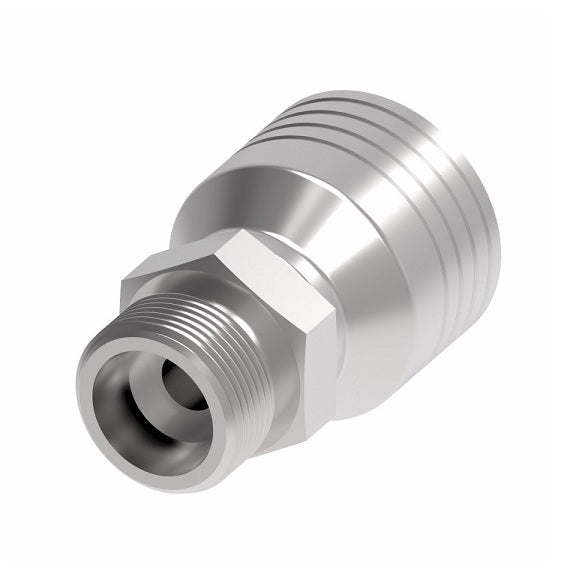

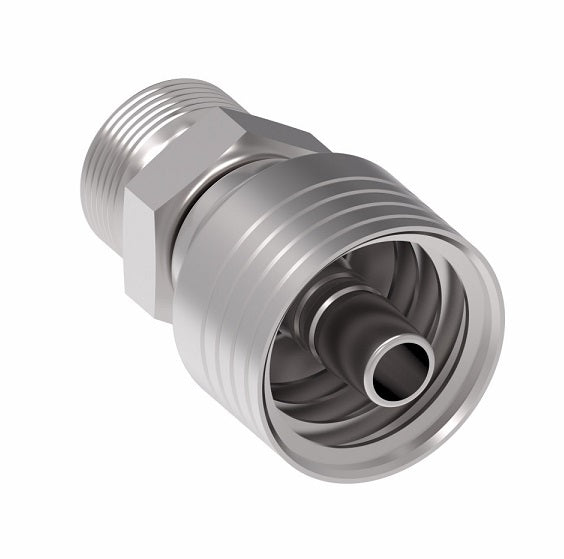

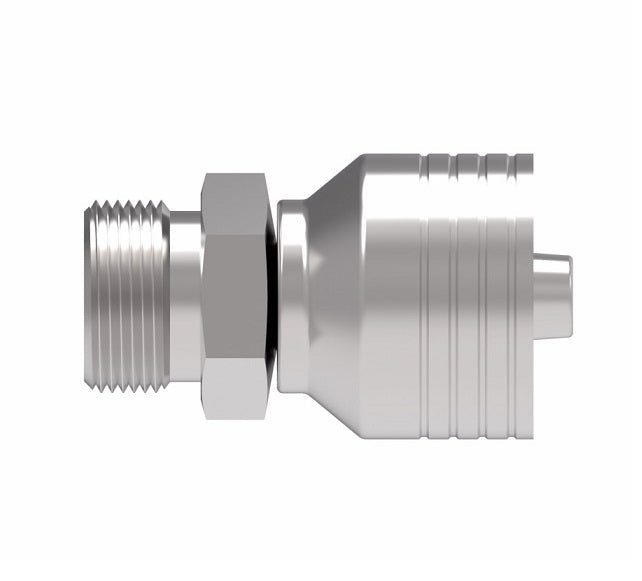

4S16EK10 Aeroquip by Danfoss | 4 Wire 4S 24° Male, Heavy Duty (EK) Crimp Fitting | S20 Male DKO/DIN x -10 Hose Barb | Steel | Pack of 10

4S16EK10 Aeroquip by Danfoss | 4 Wire 4S 24° Male, Heavy Duty (EK) Crimp Fitting | S20 Male DKO/DIN x -10 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$938.80 - $938.80

$938.80

$938.80 - $938.80

$938.80

Aeroquip® by Danfoss
4 Wire 4S Male DIN 24° Seat Rigid DKO (Heavy) Crimp Fitting (EK) - Straight

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S16EK10 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	S20 Male DIN, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Tube OD	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Tube OD	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
4S6EK6	10	-	-06	M18 x 1.5	1.79"	0.95"	0.26"	0.75"
4S8EK6	12	-	-06	M20 x 1.5	1.98"	0.98"	0.26"	0.87"
4S12EK8	16	-	-08	M24 x 1.5	2.28"	1.11"	0.38"	1.06"
4S16EK10	20	-	-10	M30 x 2	2.44"	1.29"	0.50"	1.26"
4S20EK12	25	19	-12	M36X2	3.09"	1.67"	0.56"	41mm
4S25EK16	30	25	-16	M42X2	3.30"	1.73"	0.75"	46mm
4S32EK20	38	31	-20	M52X2	4.21"	2.04"	0.99"	55mm
